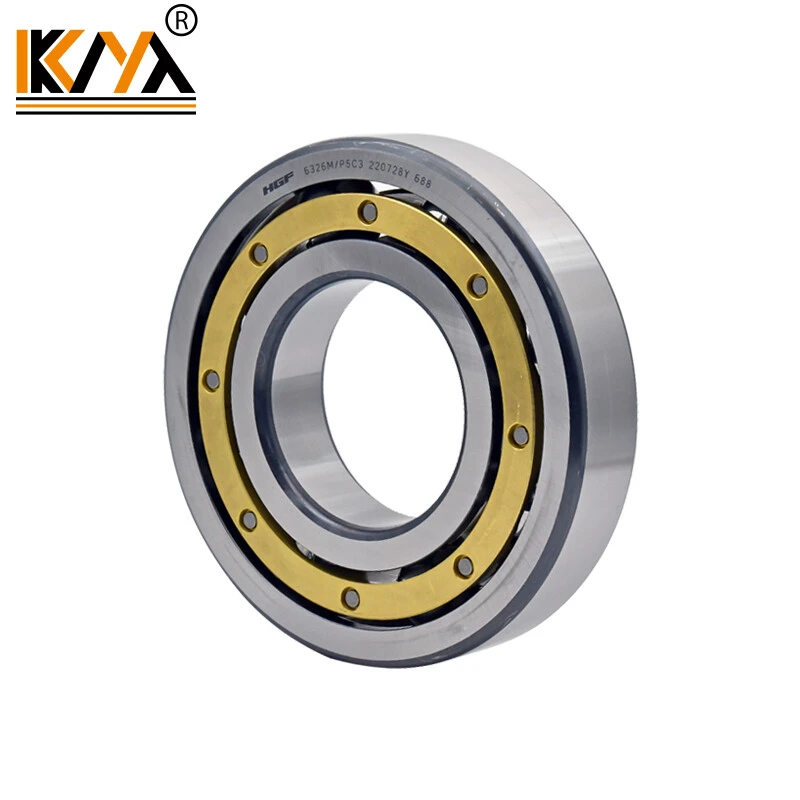

M type deep groove ball bearing

Tel：+86 18663554522

WhatsApp：+86 18663554522

Email：admin@kmbearings.com

MESSAGE

Product Introduction

Deep groove ball bearings consist of four basic components: inner ring, steel ball, and cage. Under normal operating conditions, the inner raceway, outer raceway, and steel ball bear the load, while the cage serves to separate and maintain stability for the steel ball. Single row radial deep groove ball bearings have a simple structure, no separation of inner and outer rings, and are easy to use. They are widely used in the mechanical industry, such as precision instruments, low-noise motors, transmission shafts for automobiles, motorcycles, woodworking machinery, textile machinery, mining machinery, electromechanical equipment, plastic machinery, office equipment, medical equipment, fitness, national defense, aviation, aerospace and sports equipment, and general machinery. Mainly used to withstand radial loads, but can also withstand a certain amount of axial loads. When increasing the radial clearance of the bearing, it has the properties of a radial thrust bearing and can withstand larger axial loads. This type of bearing can limit axial movement in two directions. According to the size of the clearance, it is allowed for the inner and outer rings to tilt relative to each other by 8-16 '.

Product Parameters

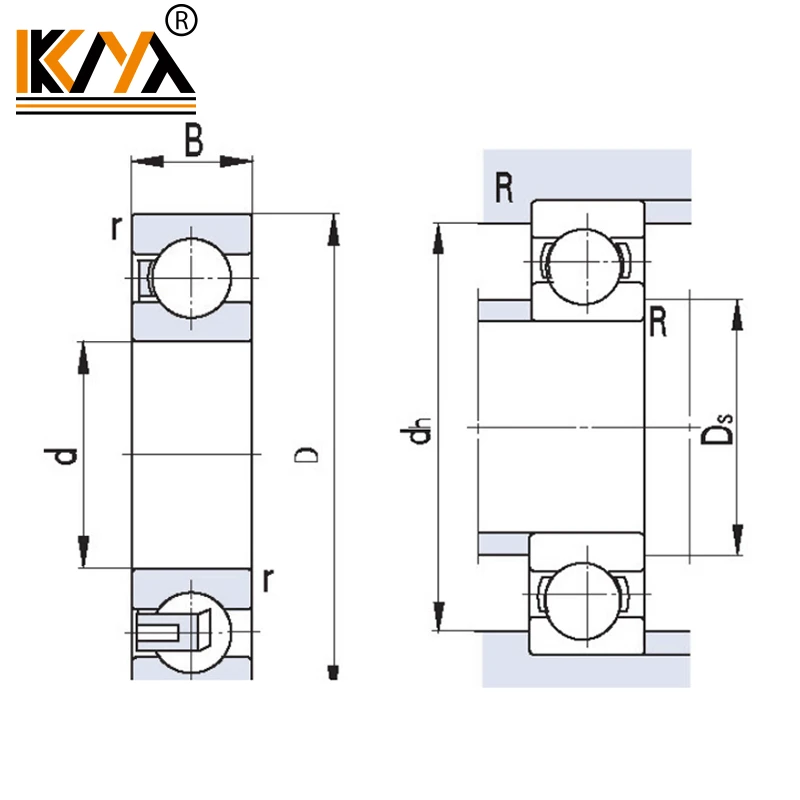

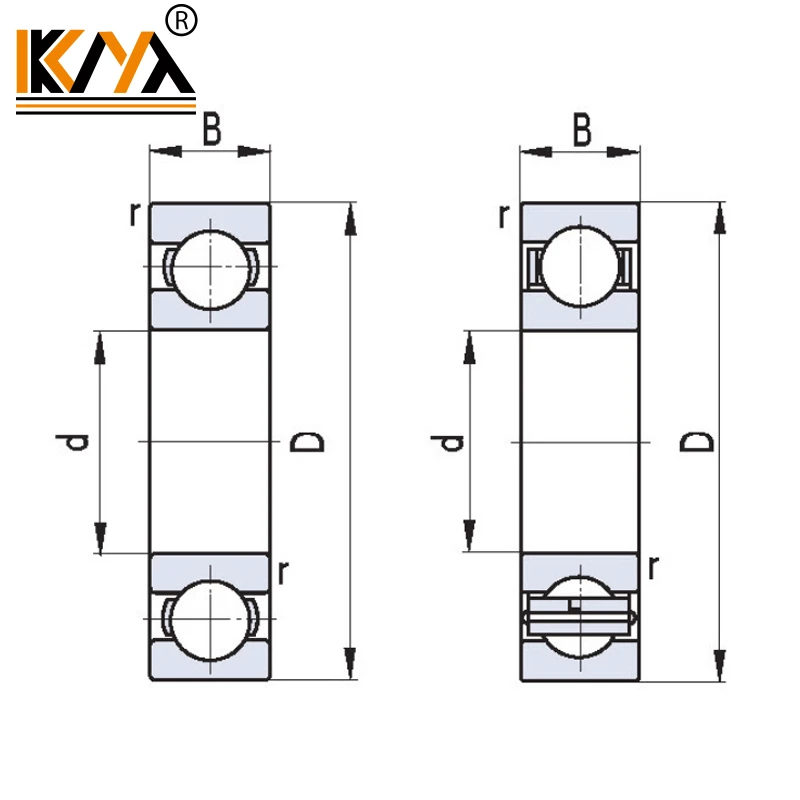

Bearing code	Basic dimensions (mm)				Installation related dimensions (mm)			Weight (Kg)
Bearing code	d	D	B	rs min	Ds(min)	dh(max)	R(max)	Weight (Kg)
62/33	33	72	17	1.1	38	66.5	1	0.308
6007	35	62	14	1	40	57	1	0.148
6207	35	72	17	1.1	41.5	65.5	1	0.284
6307	35	80	21	1.5	43	72	1.5	0.456
6307TN1	35	80	21	1.5	43	72	1.5	0.443
6407	35	100	25	1.5	43	92	1.5	0.919
6008/C3	40	68	15	1	44.6	63.4	1	0.191
6208	40	80	18	1.1	46.5	73.5	1	0.361
6208/HAP6	40	80	18	1.1	46.5	73.5	1	0.361
6208/P5YB2	40	80	18	1.1	46.5	73.5	1	0.361
370208	40	80	18	1.1	46.5	73.5	1	0.362
6308/P5YB2	40	90	23	1.5	48	82	1.5	0.642
6308	40	90	23	1.5	48	82	1.5	0.642
6308TN1	40	90	23	1.5	48	82	1.5	0.611
6308/HA	40	90	23	1.5	48	82	1.5	0.642
6308/C9YA4	40	90	23	1.5	48	82	1.5	0.642
6408	40	110	27	2	49	101	2	1.2
62/41/HAP53	41	80	17	1.1	46.5	73.5	1	0.342
16009	45	75	10	0.6	49	71	0.6	0.165
6009	45	75	16	1	50	70	1	0.246
6209	45	85	19	1.1	51.5	78.5	1	0.428
6209TN1	45	85	19	1.1	51.5	78.5	1	0.416
6209K	45	85	19	1.1	51.5	78.5	1	0.419
6209MA	45	85	19	1.1	51.5	78.5	1	0.492
209	45	85	19	1.1	51.5	78.5	1	0.492
6309/YB5	45	100	25	1.5	53	92	1.5	0.85
6309/HAC3V2YA7	45	100	25	1.5	53	92	1.5	0.807
309U2	45	100	25	1.5	53	92	1.5	0.85
309HU	45	100	25	1.5	53	92	1.5	1.05
6309A	45	100	25	1.5	53	92	1.5	0.859
6309	45	100	25	1.5	53	92	1.5	0.85
6309TN1	45	100	25	1.5	53	92	1.5	0.811
6409	45	120	29	2	54	111	2	1.69
61910	50	72	12	0.6	53.2	68.8	0.6	0.134
16010	50	80	10	0.6	54	76	0.6	0.179
6010	50	80	16	1	55	75	1	0.248
6210/HA	50	90	20	1.1	56.5	83.5	1	0.504
6210/C9YA6	50	90	20	1.1	56.5	83.5	1	0.474
6210	50	90	20	1.1	56.5	83.5	1	0.504
6310	50	110	27	2	59	101	2	1.07
6310A	50	110	27	2	59	101	2	1.12
6310TN1	50	110	27	2	59	101	2	0.998
6310TN11	50	110	27	2	59	101	2	0.998
810	50	111	27	2.3	61	101	2	1.1
6410	50	130	31	2.1	61	119	2	1.85
61811	55	72	9	0.3	57	70	0.3	0.0845
7000111	55	90	11	0.6	59	85	0.6	0.307
6011	55	90	18	1.1	61	84	1	0.384
6211K	55	100	21	1.5	63	92	1.5	0.62
6211	55	100	21	1.5	63	92	1.5	0.605
6311	55	120	29	2	64	111	2	1.39
6311TN1	55	120	29	2	64	111	2	1.31
6411	55	140	33	2.1	66	129	2	2.31
61912	60	85	13	1	64.5	80.5	1	0.201
16012	60	95	11	0.6	64	91	0.6	0.27
6012	60	95	18	1.1	66.5	88.5	1	0.426
6012M	60	95	18	1.1	66.5	88.5	1	0.497
6212	60	110	22	1.5	68	102	1.5	0.793
212	60	110	22	1.5	68	102	1.5	0.793
212U	60	110	22	1.5	68	102	1.5	0.793
212U1	60	110	22	1.5	68	102	1.5	0.793
6212/YA5	60	110	22	1.5	68	102	1.5	0.772
6212K	60	110	22	1.5	68	102	1.5	0.781
6312A	60	110	31	2.1	71	119	2	1.75
6312	60	130	31	2.1	71	119	2	1.71
6312Q1	60	130	31	2.1	71	119	2	2.07
6312TN1	60	130	31	2.1	71	119	2	1.64
6412	60	150	35	2.1	71	139	2	2.78
61913	65	90	13	1	70	85	1	0.203
6013	65	100	18	1.1	71.5	93.5	1	0.428
6013M	65	100	18	1.1	71.5	93.5	1	0.553
6213	65	120	23	1.5	73	112	1.5	0.973
6213MA	65	120	23	1.5	73	112	1.5	1.23
6213A	65	120	23	1.5	73	112	1.5	1
213G	65	120	23	1.5	73	112	1.5	1.01
180213	65	120	23	1.5	73	112	1.5	1.06
6313	65	140	33	2.1	76	129	2	2.1
6313A	65	140	33	2.1	76	129	2	1.85
6313/YA6	65	140	33	2.5	76	129	2.5	2.09
6313M	65	140	33	2.1	76	129	2	2.1
6413	65	160	37	2.1	76	149	2	3.25
6014	70	110	20	1.1	76.5	103.5	1	0.62
6014M	70	110	20	1.1	76.5	103.5	1	0.757
6214	70	125	24	1.5	78	117	1.5	1.34
6214A	70	125	24	1.5	78	117	1.5	1.12
6314A	70	150	35	2.1	81	139	2	2.6
6314/P6CMV2	70	150	35	2.1	81	139	2	2.55
314U1	70	150	35	2.1	81	139	2	2.55
6314	70	150	35	2.1	81	139	2	2.55
6314/C9	70	150	35	2.1	81	139	2	2.55
6314/YA6	70	150	35	2.1	81	139	2	2.55
6314TN1	70	150	35	2.1	81	139	2	2.46
6414	70	180	42	3	83	167	2.5	4.73
60/72	72	110	20	1.1	77	105	1	0.584
6015	75	115	20	1.1	81.5	108.5	1	0.63
6015M	75	115	20	1.1	81.5	108.5	1	0.804
16015	75	115	13	0.6	81.5	108.5	1	0.583
6215	75	130	25	1.5	83	122	1.5	1.16
6215A	75	130	25	1.5	83	122	1.5	1.21
6215M	75	130	25	1.5	83	122	1.5	1.45
6215K	75	130	25	1.5	83	122	1.5	1.16
6315	75	160	37	2.1	86	149	2	3.1
6315A	75	160	37	2.1	86	149	2	3.03
315U1	75	160	37	2.1	86	149	2	3.02
6315/YA8	75	160	37	2.1	86	149	2	3.03
6315M	75	160	37	2.1	86	149	2	3.77
6415	75	190	45	3	88	177	2.5	5.57
61916	80	110	16	1	85	105	1	0.35
6016	80	125	22	1.1	86.5	118.5	1	0.86
16016	80	125	14	0.6	84	121	0.6	0.599
6016M	80	125	22	1.1	86.5	118.5	1	1.08
6216A	80	140	26	2	89	131	2	1.47
6216	80	140	26	2	89	131	2	1.43
6316	80	170	39	2.1	91	159	2	3.64
6316M/HQ1	80	170	39	2.1	91	159	2	4.54
6316A	80	170	39	2.1	91	159	2	3.68
6416	80	200	48	3	93	187	2.5	6.63
61917	85	120	18	1.1	91	114	1	0.557
16017	85	130	14	0.6	89	126	0.6	0.636
6017	85	130	22	1.1	91.5	123.5	1	0.935
6017M	85	130	22	1.1	91.5	123.5	1	1.12
6217	85	150	28	2	94	141	2	1.8
6217K	85	150	28	2	94	141	2	1.81
6217A	85	150	28	2	94	141	2	1.85
6217/HA	85	150	28	2	94	141	2	1.8
6217M	85	150	28	2	94	141	2	1.91
6317	85	180	41	3	98	167	25	4.33
6317/P6CMV2	85	180	41	3	98	167	2.5	4.33
6317M	85	180	41	3	98	167	2.5	4.97
317U1	85	180	41	3	98	167	2.5	4.33
6417	85	210	52	4	101	194	3	8.12
61918	90	125	18	1.1	96.5	118.5	1	0.572
61918M	90	125	18	1.1	96.5	118.5	1	0.68
61918/YA6	90	125	18	0.6	96.5	118.5	0.5	0.572
6018	90	140	24	1.5	98	132	1.5	1.16
16018M	90	140	16	1	95	135	1	0.941
6018M	90	140	24	1.5	98	132	1.5	1.39
6218	90	160	30	2	99	151	2	2.19
218U1	90	160	30	2	99	151	2	2.19
6318	90	190	43	3	103	177	2.5	4.97
6318/CM	90	190	43	3	103	177	2.5	4.97
6318M/C4	90	190	43	3	103	177	2.5	6.37
6318/YA6	90	190	43	5.5	103	177	2.5	4.97
6418	90	225	54	4	106	209	3	9.47
61819	95	120	13	1	99.6	115	1	0.288
61919	95	130	18	1.1	101	124	1	0.61
16019	95	145	16	1	100	140	1	0.884
6019	95	145	24	1.5	103	137	1.5	1.14
6219	95	170	32	2.1	106	159	2	2.61
6219M	95	170	32	2.1	106	159	2	3.26
6319	95	200	45	3	108	187	2.5	5.65
6319/CM	95	200	45	3	108	187	2.5	5.58
6319A	95	200	45	3	108	187	2.5	5.84
6319F1/HQ1	95	200	45	3	108	187	2.5	6.93
6319M/HQ1	95	200	45	3	108	187	2.5	7.11
6419M	95	240	55	4	108	215	2.5	13.4
61820	100	125	13	1	105	120	1	0.326
61920M	100	140	20	1.1	106.5	133.5	1	0.96
61920	100	140	20	1.1	106.5	133.5	1	0.85
16020	100	150	16	1	108	142	1	0.916
6020	100	150	24	1.5	108	142	1.5	1.17
6020M	100	150	24	1.5	108	142	1.5	1.4
720	100	180	28	1.8	111.5	171.5	1.8	2.7
6220	100	180	34	2.1	111	169	2	3.2
6320	100	215	47	3	113	202	2.5	7.01
6320A	100	215	47	3	113	202	2.5	7.1
6320M	100	215	47	3	113	202	2.5	8.94
6320MA	100	215	47	3	113	202	2.5	9.28
6320/YA8	100	215	47	3	113	202	2.5	7.11
6420	100	250	58	4	116	234	3	12.8
6420M	100	250	58	4	116	234	3	15.4
61821M	105	130	13	1	110	125	1	0.362
6021	105	160	26	2	114	151	2	1.62
6021A	105	160	26	2	114	151	2	1.65
6021M	105	160	26	2	114	151	2	1.92
721	105	180	22	1.1	113.5	173.5	1	2.61
6221	105	190	36	2.1	116	179	2	3.66
6321	105	225	49	3	118	212	2.5	7.84
61822	110	140	16	1	115	135	1	0.505
61922	110	150	20	1.1	116.5	143.5	1	0.888
61922M	110	150	20	1.1	116.5	143.5	1	1.01
16022	110	170	19	1	115	165	1	1.48
6022	110	170	28	2	119	161	2	2.09
6022M	110	170	28	2	119	161	2	2.72
6022M/YB5	110	170	28	2	119	161	2	2.71
6222	110	200	38	2.1	121	189	2	4.29
6222M	110	200	38	2.1	121	189	2	5.46
6322	110	240	50	3	123	227	2.5	9.49
6322A	110	240	50	3	123	227	2.5	9.72
6322M	110	240	50	3	123	227	2.5	11.8
6422	110	280	65	4	126	264	3	18.3
6422M	110	280	65	4	126	264	3	19
61824	120	150	16	1	125	145	1	0.568
61924	120	165	22	1.1	126.5	158.5	1	1.21
61924M	120	165	22	1.1	126.5	158.5	1	1.54
16024	120	180	19	1	125	175	1	1.64
16024M	120	180	19	1	125	175	1	1.82
6024	120	180	28	2	129	171	2	2.21
6024A	120	180	28	2	129	171	2	2.02
6024M	120	180	28	2	129	171	2	2.68
6224	120	215	40	2.1	131	204	2	5.26
6224M	120	215	40	2.1	131	204	2	6.33
6324	120	260	55	3	133	247	2.5	12.2
6324A	120	260	55	3	133	247	2.5	12.5
6324M/C3	120	260	55	3	133	247	2.5	13.7
6324F1/HQ1	120	260	55	3	133	247	2.5	13.4
619/121X4M	120.65	165.1	22.225	1.1	126.5	158.5	1	1.48
619/121M	121	165	22	1.1	126.5	158.5	1	1.48
925	127	228.6	34.925	2	136	219.6	2	7
61826MA	130	165	18	1.1	136	159	1	0.898
61926M	130	180	24	1.5	138	172	1.5	1.92
61926	130	180	24	1.5	138	172	1.5	1.56
726	130	190	19	0.7	134	186	0.7	1.7
726H	130	190	19	0.7	134	186	0.7	1.91
16026M	130	200	22	1.1	136.5	193.5	1	2.32
16026	130	200	22	1.1	136.5	193.5	1	2.19
6026	130	200	33	2	139	191	2	3.29
6026M	130	200	33	2	139	191	2	3.96
6026MA	130	200	33	2	139	191	2	3.98
6226	130	230	40	3	143	217	2.5	6.04
