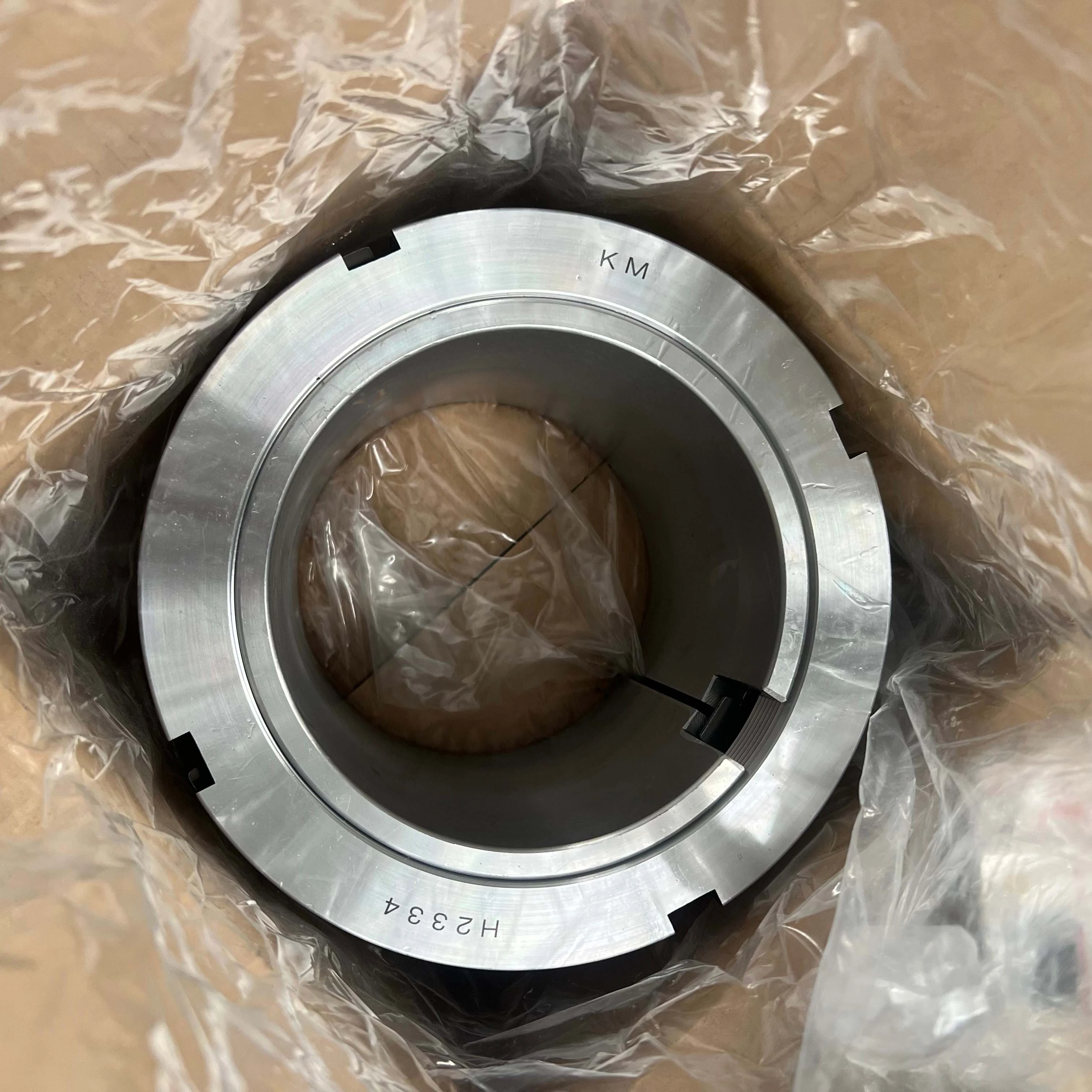

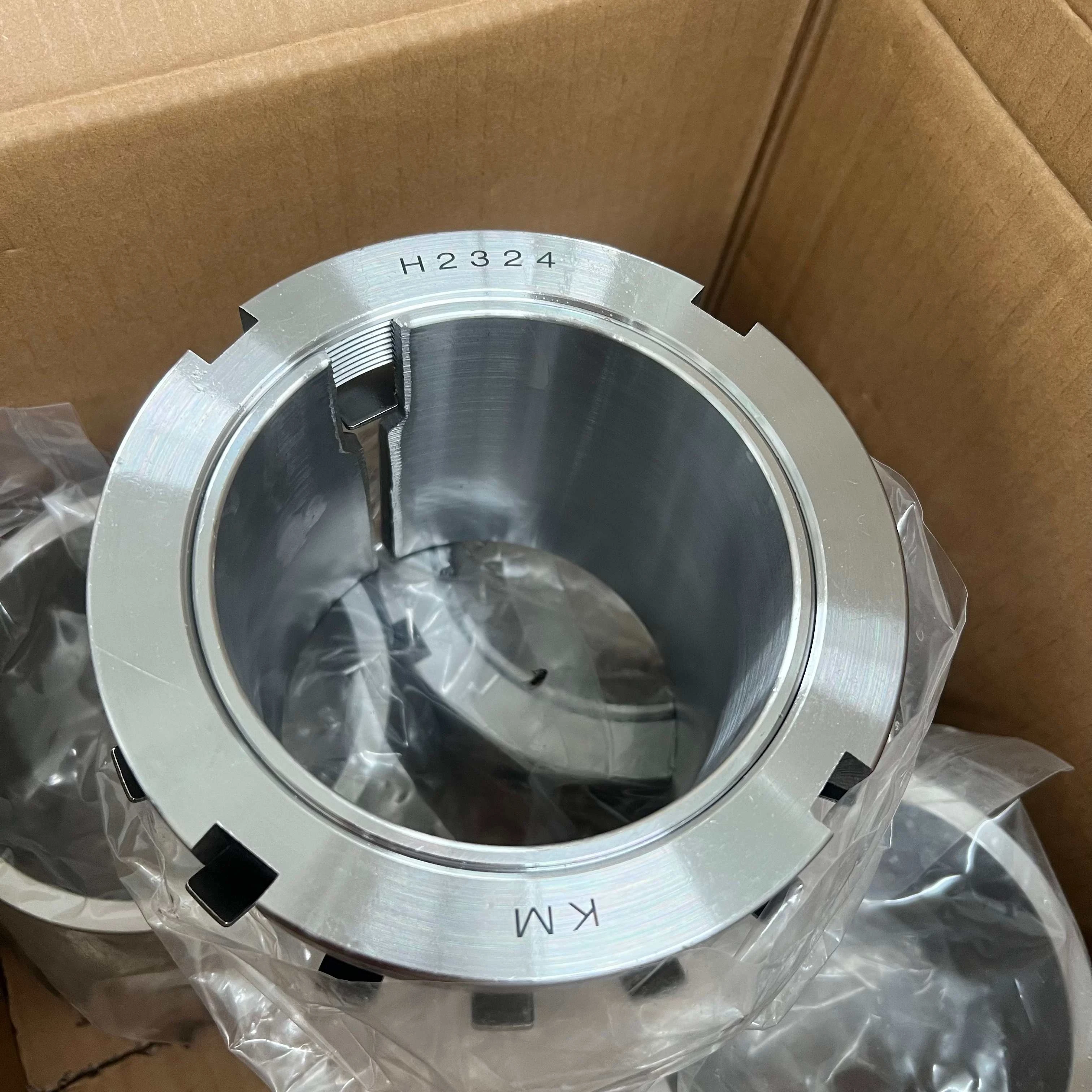

Adapter sleeves are suitable for locating bearings with a tapered bore on cylindrical shafts. The adapter sleeves require no additional means of retention on the shaft.

Adapter sleeves are supplied complete with locknuts and tab washers. For larger sizes, retaining brackets are used instead of tab washers.

With a sleeve bore diameter greater than or equal to 140 mm, designs with oil slots permit the use of the hydraulic method.

Features & Benefits

• Included lock nut and washer hold the sleeve firmly

• M55x2 thread is widely compatible with standard fittings

• Weighs just 330g to put minimal strain on your assembly

• Fits a plain or stepped shaft for versatility

• Comes with a slit, making it easy to install

Applications

• Automotive manufacturing

• Agricultural machinery

• Aerospace systems

• Medical imaging equipment

Why should my bearing sit firmly on a shaft?

Bearings need to stay in one place and securely wrap around a shaft to support efficient rotation. Loose parts cause friction, noise and and can lead to machine damage.

How wide is this adapter sleeve?

It's only 37mm wide, so you can easily use it to locate a bearing on shorter shafts.
