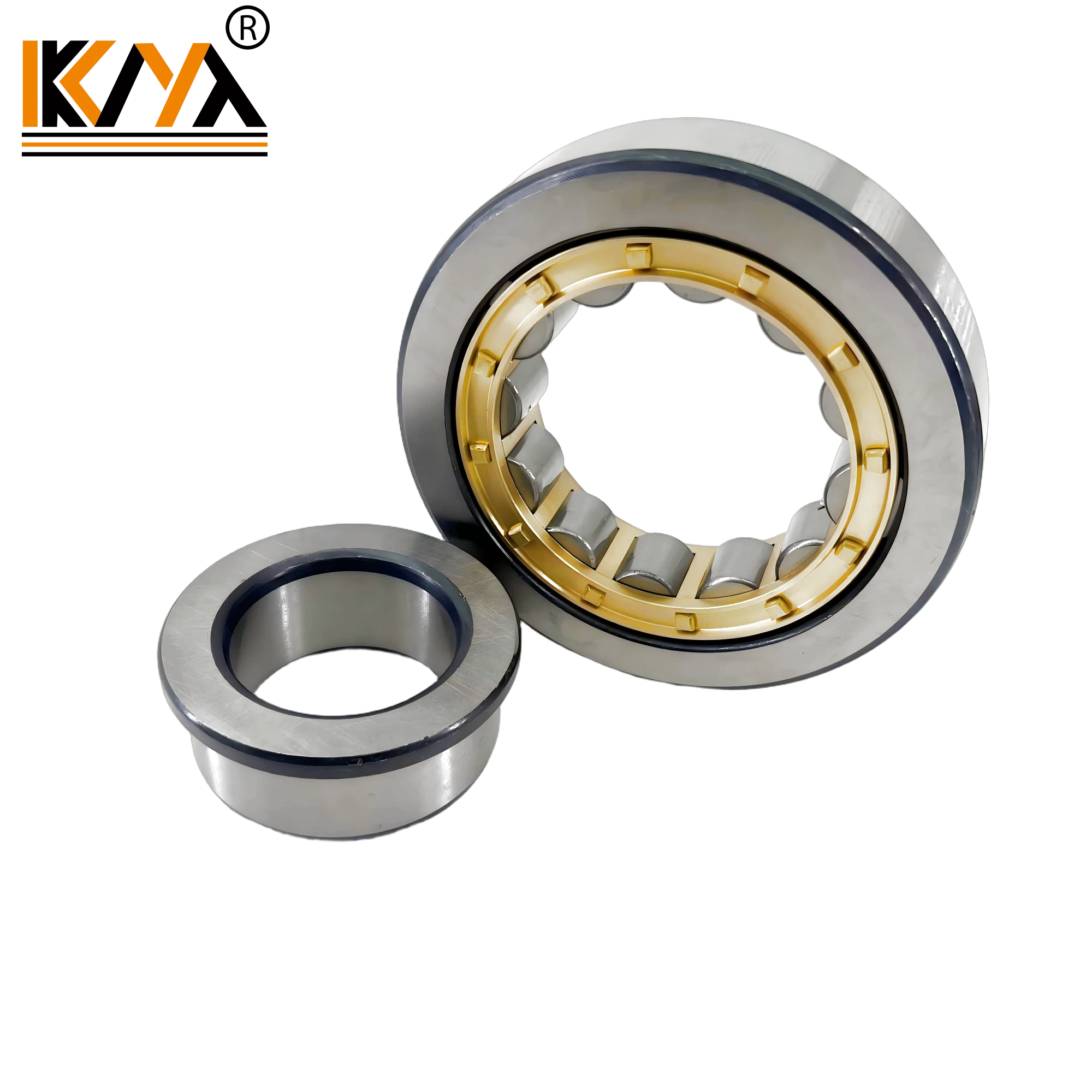

Cylindrical roller bearings belong to separable bearings, with linear contact between the inner and outer rings and the rollers, low friction coefficient, and high ultimate speed. Double row cylindrical roller bearings have the advantages of compact structure, strong rigidity, high load-bearing capacity, and small deformation under load, and are used for machine tool spindle support. Cylindrical roller bearings are commonly used in heavy machinery such as cold and hot rolling mills. The basic type of radial clearance for single row cylindrical roller bearings is ordinary grade. Bearings with suffix C3, C4 or other clearance grades can be selected according to the actual situation.

Product Parameters

Bearing code	Basic dimensions (mm)							Installation related dimensions (mm)							Weight (Kg)
Bearing code	d	D	B	rs min	r1s min	F	E	da(min)	da(max)	db(min)	Da(max)	Da(min)	ra(max)	rb(max)	Weight (Kg)
NU205EM	25	52	15	1	0.6	31.5	-	29	30	36	47	-	1	0.7	0.159
NJ205M	25	52	15	1	0.6	31.5	-	29	30	36	47	-	1	0.6	0.164
NJ205ETN1	25	52	15	1	0.6	31.5	-	29	30	36	47	-	1	0.6	0.134
NUP2205ETN1	25	52	18	1	1	31.5	-	30.6	-	36	46.4	-	1	1	0.171
NJ305M	25	62	17	1.1	1.1	34	-	31.5	32	40	55.5	-	1	1	0.267
NJ305ETN1	25	62	17	1.1	1.1	34	-	31.5	32	40	55.5	-	1	1	0.239
NUP305EM	25	62	17	1.1	1.1	34	-	31.5	-	40	55.5	-	1	1	0.28
NJ2305M/HAP6	25	62	24	1.1	1.1	35	-	31.5	32	40	55.5	-	1	1	0.453
NU1006M	30	55	13	1	0.6	36.5	-	34	35	38	50	-	1	0.6	0.138
NU1006TN1	30	55	13	1	0.6	36.5	-	34	35	38	50	-	1	0.6	0.119
NJ206EM	30	62	16	1	0.6	37.5	-	34	36	43	57	-	1	0.6	0.264
NJ206ETN1	30	62	16	1	0.6	37.5	-	34	36	43	57	-	1	0.6	0.203
NU206EM	30	62	16	1	0.6	37.5	-	34	36	39	57	-	1	0.6	0.259
NJ2206EM	30	62	20	1	0.6	37.5	-	34	36	43	57	-	1	0.6	0.297
NJ2206ETN1	30	62	20	1	0.6	37.5	-	34	36	43	57	-	1	0.6	0.265
NJ306X3WB/C9	30	70	18	1.1	0.6	40	-	35	38	45	63.5	-	1	1	0.342
NJ306EM	30	72	19	1.1	1.1	40.5	-	36.5	39	47	65.5	-	1	1	0.411
NJ306ETN1	30	72	19	1.1	1.1	40.5	-	36.5	39	47	65.5	-	1	1	0.374
NUP2306M	30	72	27	1.1	1.1	42	-	36.5	-	47	65.5	-	1	1	0.585
NU2306EM	30	72	27	1.1	1.1	40.5	-	36.5	-	47	65.5	-	1	1	0.593
NJ406M	30	90	23	1.5	1.5	45	-	38	43	52	82	-	1.5	1.5	0.882
NU1007M	35	62	14	1	0.6	42	-	38.2	41	44	56	-	1	0.6	0.173
NU1007TN1	35	62	14	1	0.6	42	-	38.2	41	44	56	66	1	0.6	0.156
N207EM	35	72	17	0.6	1.1	-	64	41.5	62	-	68	-	1	0.6	0.331
NJ207EM	35	72	17	1.1	0.6	44	-	39	42	50	65.5	-	1	0.6	0.338
NJ207ETN1	35	72	17	1.1	0.6	44	-	39	42	50	65.5	-	1	0.6	0.303
NU207EM	35	72	17	1.1	0.6	44	-	39	42	46	65.5	-	1	0.6	0.331
NJ2207EM	35	72	23	1.1	1.1	44	-	39	42	50	65.5	-	1	0.6	0.363
NU2207EM	35	72	23	1.1	1.1	44	-	39	42	46	65.5	-	1	0.6	0.445
NJ2207ETN1	35	72	23	1	0.6	44	-	39	42	50	65.5	-	1	0.6	0.404
NCL307E/YA	35	80	21	1.5	1.5	-	67.8	41.5	44	48	72	-	1.5	1	0.503
NJ307M	35	80	21	1.5	1.1	46.2	-	41.5	44	53	72	72	1.5	1	0.604
N307M	35	80	21	1.5	1.5	-	70.2	41.5	44	-	73.5	-	1.5	1	0.595
NJ307E	35	80	21	1.5	1.1	46.2	-	41.5	44	53	72	-	1.5	1	0.54
NF307M	35	80	21	1.5	1.1	-	70.2	41.5	67	-	73.5	72	1.5	1	0.61
NF307ETN1	35	80	21	1.5	1.1	-	70.2	41.5	67	-	73.5	72	1.5	1	0.519
NU307M	35	80	21	1.5	1.1	46.2	-	41.5	44	48	72	-	1.5	1	0.591
NU307E	35	80	21	1.5	1.1	46.2	-	41.5	44	48	72	-	1.5	1	0.526
NU307EQ1	35	80	21	1.5	1.1	46.2	-	41.5	44	48	72	-	1.5	1	0.591
NJ2307M	35	80	31	1.5	1.5	46.2	-	41.5	44	53	72	-	1.5	1	0.833
NJ2307EM	35	80	31	1.5	1.5	46.2	-	41.5	44	53	72	-	1.5	1	0.823
NU2307EM	35	80	31	1.1	1.1	46.2	-	41.5	44	48	72	-	1.5	1	0.81
NU2307EM	35	80	31	1.5	1.5	46.2	-	41.5	44	48	72	-	1	1	0.851
NJ407M	35	100	25	1.5	1.5	53	-	44	49	59	85	-	1.5	1.5	1.1
NUP6/38X2NM	38	83	25.4	1.1	1.1	48.5	-	44.5	47	55	75	-	1	1	0.705
NU1008M	40	68	15	1	0.6	47	-	42	45	50	65	-	1	0.6	0.231
NU1008TN1	40	68	15	1	0.6	47	-	42	45	50	65	-	1	0.6	0.183
NJ208EM	40	80	18	1.1	1.1	49.5	-	46.5	48	56	73.5	-	1	1	0.46
NU208EM	40	80	18	1.1	1.1	49.5	-	46.5	48	51	73.5	-	1	1	0.439
NUP208EM	40	80	18	1.1	1.1	49.5	-	46.5	-	56	73.5	-	1	1	0.46
NUP208ETN1	40	80	18	1.1	1.1	49.5	-	46.5	48	56	73.5	-	1	1	0.4
N208EM	40	80	18	1.1	1.1	-	71.5	46.5	69	-	73.5	73	1	1	0.425
NJ2208EM	40	80	23	1.1	1.1	49.5	-	46.5	48	56	73.5	-	1	1	0.539
NU2208EM	40	80	23	1.1	1.1	49.5	-	46.5	48	51	73.5	-	1	1	0.53
NU2208ETN1	40	80	23	1.1	1.1	49.5	-	46.5	48	51	73.5	-	1	1	0.487
NCL308E/YA	40	90	23	1.5	1.5	-	77.5	48	50	60	82	-	1.5	1.5	0.683
N308EM	40	90	23	1.5	1.5	-	80	48	78	-	82	82	1.5	1.5	0.794
NF308E	40	90	23	1.5	1.5	-	80	48	-	-	82	82	1.5	1.5	0.75
NJ308EM	40	90	23	1.5	1.5	52	-	48	50	60	82	-	1.5	1.5	0.815
NJ308ETN1	40	90	23	1.5	1.5	52	-	48	50	60	82	-	1.5	1.5	0.669
NUP308EM/C2	40	90	23	1.5	1.5	52	-	48	-	60	82	-	1.5	1.5	0.819
NU2308EM	40	90	33	1.5	1.5	52	-	48	49	55	82	-	1.5	1.5	1.01
NJ2308E	40	90	33	1.5	1.5	52	-	48	49	60	82	-	1.5	1.5	1.1
NJ209M	45	85	19	1.1	1.1	55	-	51.5	53	61	78.5	-	1	1	0.487
NJ209EM	45	85	19	1.1	1.1	54.5	-	51.5	53	61	78.5	-	1	1	0.51
NF209EM	45	85	19	1.1	1.1	-	76.5	51.5	73	-	78.5	78	1	1	0.51
NF209ETN1	45	85	19	1.1	1.1	-	76.5	51.5	73	-	78.5	78	1	1	0.444
NUP209EM	45	85	19	1.1	1.1	54.5	-	52	-	61	78	-	1	-	0.507
NU2209EM	45	85	23	1.1	1.1	54.5	-	51	53	58	79	-	1	1	0.635
NU2209ETN1	45	85	23	1.1	1.1	54.5	-	51	53	58	79	-	1	1	0.571
NJ2209E/C3	45	85	23	1.1	11	54.5	-	51.5	53	61	78.5	-	1	1	0.639
NJ2209EM	45	85	23	1.1	1.1	54.5	-	51.5	53	61	78.5	-	1	1	0.645
NU5209XPC3	45	85	30.16	1.1	1.1	55.52	-	51	53	58	79	-	1	1	0.843
N309M	45	100	25	1.5	1.5	-	86.5	53	84	-	92	90.5	1.5	1.5	0.92
N309J	45	100	25	1.5	1.5	-	86.5	53	84	-	92	90.5	1.5	1.5	0.82
NCL309E/YA	45	100	25	1.5	1.5	-	88.5	53	84	-	92	90.5	1.5	1.5	0.872
NU309M/C3	45	100	25	1.5	1.5	58.5	-	53	56	61	92	-	1.5	1.5	0.992
NJ309EM	45	100	25	1.5	1.5	58.5	-	53	56	67	92	-	1.5	1.5	1
N309EM	45	100	25	1.5	1.5	-	88.5	53	86	-	92	91	1.5	1.5	0.959
NUP309E	45	100	25	1.5	1.5	58.5	-	53	-	67	92	-	1.5	1.5	1.01
N309E	45	100	25	1.5	1.5	-	88.5	53	86	-	92	91	1.5	1.5	0.964
N309ETN1	45	100	25	1.5	1.5	-	88.5	53	86	-	92	91	1.5	1.5	0.846
NF309E	45	100	25	1.5	1.5	-	88.5	53	-	-	92	91	1.5	1.5	0.995
NJ309E	45	100	25	1.5	1.5	58.5	-	53	56	67	92	-	1.5	1.5	1.01
NU309E	45	100	25	1.5	1.5	58.5	-	53	56	61	92	-	1.5	1.5	0.986
NU309NRB1/YA6	45	100	25	1.5	1.5	56.4	-	51	54	60	92	-	1.5	1.5	0.912
NUP309ETN1/HAC3YA6	45	100	25	1.5	0.8	58.5	-	53	-	67	92	-	1.5	1.5	0.892
NF2309X2J/YA6	45	100	31	1.5	4.5	-	88	53	-	-	92	91	1	1	1.12
NU2309EM/C3	45	100	36	1.5	1.5	58.5	-	53	56	61	93	-	1.5	1.5	1.49
NJ2309E	45	100	36	1.5	1.5	58.5	-	53	56	67	92	-	1.5	1.5	1.45
NJ2309EM	45	100	36	1.5	1.5	58.5	-	53	56	67	92	-	1.5	1.5	1.52
NU2309E	45	100	36	1.5	1.5	58.5	-	53	56	61	93	-	1.5	1.5	1.42
N409M	45	120	29	2	2	-	100.5	54	97	-	111	103	2	2	1.67
NU409M	45	120	29	2	2	64.5	-	54	62	67	111	-	2	2	1.87
NJ409M	45	120	29	2	2	64.5	-	54	62	74	111	-	2	2	1.88
NJ1010M	50	80	16	1	0.6	57.5	-	54	56	60	75	-	1	0.6	0.316
NJ1010TN1	50	80	16	1	0.6	57.5	-	54	56	60	75	-	1	0.6	0.279
N210M	50	90	20	1.1	1.1	-	80.4	56.5	79	-	83.5	82	1	1	0.559
N210EM	50	90	20	1.1	1.1	-	81.5	56.5	79	-	83.5	82	1	1	0.566
NF210M	50	90	20	1.1	1.1	-	80.4	56.5	-	-	83.5	82	1	1	0.565
NU210M	50	90	20	1.1	1.1	60.4	-	56.5	57	62	83.5	-	1	1	0.564
NU210Q1	50	90	20	1.1	1.1	60.4	-	56.5	57	62	83.5	-	1	1	0.557
NU210EM	50	90	20	1.1	1.1	59.5	-	56.5	57	62	83.5	-	1	1	0.562
NJ210EM	50	90	20	1.1	1.1	59.5	-	56.5	57	66	83.5	-	1	1	0.573
NJ210ETN1	50	90	20	1.1	1.1	59.5	-	56.5	57	66	83.5	-	1	1	0.503
NF210E	50	90	20	1.1	1.1	-	81.5	56.5	-	-	83.5	82	1	1	0.578
NUP210E	50	90	20	1.1	1.1	59.5	-	56.5	-	66	83.5	-	1	1	0.591
NU2210EM	50	90	23	1.1	1.1	59.5	-	56.5	57	62	83.5	-	1	1	0.65
NJ2210EM	50	90	23	1.1	1.1	59.5	-	56.5	57	66	83.5	-	1	1	0.666
NJ2210ETN1	50	90	23	1.1	1.1	59.5	-	56.5	57	66	83.5	-	1	1	0.579
NU5210XPC3	50	90	30.16	1.1	1.1	60.45	-	56	58	62	84	-	1	1	0.902
N310M	50	110	27	2	2	-	95	59	93	-	101	97	2	2	1.17
NJ310M	50	110	27	2	2	65	-	59	63	73	101	-	2	2	1.36
NJ310M+HJ310	50	110	27	2	2	65	-	59	63	73	101	-	2	2	1.52
NU310M/C3	50	110	27	2	2	65	-	59	63	67	101	-	2	2	1.29
N310EM	50	110	27	2	2	-	97	59	95	-	101	99	2	2	1.3
N310E	50	110	27	2	2	-	97	59	95	-	101	99	2	2	1.3
NJ310E	50	110	27	2	2	65	-	59	63	73	101	-	2	2	1.33
NU310E	50	110	27	2	2	65	-	59	63	67	101	-	2	2	1.29
NUP310M	50	110	27	2	2	65	-	61	-	73	99	-	2	-	1.37
NU2310M	50	110	40	2	2	65	-	59	61	67	101	-	2	2	1.91
NJ2310E	50	110	40	2	2	65	-	59	62	73	101	-	2	2	1.95
NJ2310EM	50	110	40	2	2	65	-	59	62	73	101	-	2	2	1.92
NU2310E	50	110	40	2	2	65	-	59	61	62	67	101	2	2	1.92
NU2310EM	50	110	40	2	2	65	-	59	61	67	101	-	2	2	1.89
NU2310ETN1	50	110	40	2	2	65	-	59	61	67	101	-	2	2	1.71
N410M	50	130	31	2.1	2.1	-	110	61	107	-	119	113	2	2	2.18
N410	50	130	31	2.1	2.1	-	110	61	107	-	119	113	2	2	2.09
NU410M	50	130	31	2.1	2.1	70	-	61	68	73	119	-	2	2	2.2
NU410	50	130	31	2.1	2.1	70	-	61	68	73	119	-	2	2	2.11
NJ410	50	130	31	2.1	2.1	70	-	61	68	81	119	-	2	2	2.15
NJ410M	50	130	31	2.1	2.1	70	-	61	68	81	119	-	2	2	2.24
NU1011M	55	90	18	1.1	1	64.5	-	59.6	63	67	84	-	1	1	0.479
NU1011TN1	55	90	18	1.1	1	64.5	-	59.6	63	67	84	-	1	1	0.403
NF211M	55	100	21	1.5	1.5	-	88.5	63	-	-	93.5	92	1.5	1.5	0.806
NF211E	55	100	21	1.5	1.5	-	90	63	-	-	93.5	92	1.5	1.5	0.757
NJ211E	55	100	21	1.5	1.1	66	-	61.5	64	73	92	-	1.5	1	0.767
NUP211EM	55	100	21	1.5	1.5	66	-	61.5	64	73	92	-	1	1	0.762
NUP211ETN1	55	100	21	1.5	1.5	66	-	61.5	64	73	92	-	1	1	0.667
NJ2211EM	55	100	25	1.5	1.1	66	-	61.5	64	73	92	-	1.5	1	0.783
NJ2211ETN1	55	100	25	1.5	1.1	66	-	61.5	64	73	92	-	1.5	1	0.666
NU2211EM	55	100	25	1.5	1.1	66	-	61.5	64	68	92	-	1.5	1	0.763
N3211M	55	100	33.3	1.5	1.1	-	88.9	63	87	-	93.5	92	1.5	1	1.2
NU5211XPC3	55	100	33.34	1.1	1.1	66.9	-	61	65	69	93	-	1	1	1.21
NF311M	55	120	29	2	2	-	104.5	64	-	-	111	107	2	2	1.7
N311M	55	120	29	2	2	-	104.5	64	102	-	111	107	2	2	1.65
N311J	55	120	29	2	2	-	104.5	64	102	-	111	107	2	2	1.45
NU311M	55	120	29	2	2	70.5	-	64	68	73	111	-	2	2	1.74
NJ311M	55	120	29	2	2	70.5	-	64	68	79	111	-	2	2	1.75
NUP311M	55	120	29	2	2	70.5	-	64	-	79	111	-	2	2	1.76
NJ311M/YA6	55	120	29	2	2	70.5	-	64	68	80	111	-	2	2	1.75
NUP311NJC	55	120	29	2	0.5	68.75	-	64	-	80	111	-	2	2	1.65
NUP311NRJC	55	120	29	2	2	68.75	-	64	-	80	111	-	2	2	1.71
N311EM	55	120	29	2	2	-	106.5	64	104	-	111	109	2	2	1.6
N311E	55	120	29	2	2	-	106.5	64	104	-	111	109	2	2	1.61
NJ311E	55	120	29	2	2	70.5	-	64	68	80	111	-	2	2	1.67
NU311E	55	120	29	2	2	70.5	-	64	68	73	111	-	2	2	1.64
NUP311E	55	120	29	2	2	70.5	-	64	-	80	111	-	2	2	1.69
N311ETN1	55	120	29	2	2	-	106.5	64	104	-	111	109	2	2	1.42
NU311EM	55	120	29	2	2	70.5	-	64	68	73	111	-	2	2	1.64
NU311EM/C9	55	120	29	2	2	70.5	-	64	68	73	111	-	2	2	1.63
NU2311M	55	120	43	2	2	70.5	-	64	68	73	111	-	2	2	2.43
N2311E	55	120	43	2	2	-	106.5	64	104	-	111	110	2	2	2.56
NJ2311E	55	120	43	2	2	70.5	-	64	68	80	111	-	2	2	2.62
NU2311E	55	120	43	2	2	70.5	-	64	68	73	111	-	2	2	2.59
N411M	55	140	33	2.1	2.1	-	117.2	66	114	-	129	119	2	2	2.86
NJ411M/C5	55	140	33	2.1	2.1	77.2	-	66	74	88	129	-	2	2	2.95
NU411M	55	140	33	2.1	2.1	77.2	-	66	74	88	129	-	2	2	2.85
N1012M	60	95	18	1.1	1	-	85.5	65	83	-	88.5	87	1	1	0.432
N1012TN1	60	95	18	1.1	1	-	85.5	65	83	-	88.5	87	1	1	0.387
NU1012M	60	95	18	1.1	1	69.5	-	65	67	72	90	-	1	1	0.466
NF212M	60	110	22	1.5	1.5	-	97.5	68	-	-	102	-	1.5	1.5	0.957
N612J	60	140	51	2.5	2.5	-	122	72	119	-	128	125	2	2	3.47
N612M	60	140	51	2.5	2.5	-	122	72	119	-	128	125	2	2	3.96
N612M/C9	60	140	51	2.5	2.5	-	122	72	119	-	128	125	2	2	3.96
N412M	60	150	35	2.1	2.1	-	127	71	124	-	139	130	2	2	3.29
N412	60	150	35	2.1	2.1	-	127	71	124	-	139	130	2	2	3.18
NU412M	60	150	35	2.1	2.1	83	-	71	80	85	139	-	2	2	3..23
NU412	60	150	35	2.1	2.1	83	-	71	80	85	139	-	2	2	3.13
NJ412J	60	150	35	2.1	2.1	83	-	71	80	94	139	-	2	2	3.13
NJ412M	60	150	35	2.1	2.1	83	-	71	80	94	139	-	2	2	3.36
NJ412	60	150	35	2.1	2.1	83	-	71	80	94	139	-	2	2	3.25
NUP412	60	150	35	2.1	2.1	83	-	71	-	94	139	-	2	2	3.43
NUP412J	60	150	35	2.1	2.1	83	-	71	-	94	139	-	2	2	3.31
NUP412M	60	150	35	2.1	2.1	83	-	71	-	94	139	-	2	2	3.42
RNU3210M	65	120	30.2	1.1	1.1	-	80.4	-	-	-	87	85	1	1	0.647
N213M	65	120	23	1.5	1.5	-	105.6	73	103	-	112	111	1.5	1.5	1.11
NU213M	65	120	23	1.5	1.5	79.6	-	73	76	81	112	-	1.5	1.5	1.12
NJ213M	65	120	23	1.5	1.5	79.6	-	73	76	87	112	-	1.5	1.5	1.14
NUP213M	65	120	23	1.5	1.5	79.6	-	73	-	87	112	-	1.5	1.5	1.22
NF213E	65	120	23	1.5	1.5	-	108.5	73	-	-	112	111	1.5	1.5	1.14
N213E	65	120	23	1.5	1.5	-	108.5	73	106	-	112	111	1.5	1.5	1.05
NU213E	65	120	23	1.5	1.5	78.5	-	73	76	81	112	-	1.5	1.5	0.994
NJ213E	65	120	23	1.5	1.5	78.5	-	73	76	87	112	-	1.5	1.5	1.13
NUP213E	65	120	23	1.5	1.5	78.5	-	73	-	87	112	-	1.5	1.5	1.16
NUP213EM	65	120	23	1.5	1.5	78.5	-	73	-	87	112	-	1.5	1.5	1.22
NUP213ETN1	65	120	23	1.5	1.5	78.5	-	73	-	87	112	-	1.5	1.5	1.07
NU213ETN1	65	120	23	1.5	1.5	78.5	-	73	76	81	112	-	1.5	1.5	1
NJ2213M	65	120	31	1.5	1.5	79.6	-	73	76	87	112	-	1.5	1.5	1.65
NU2213M	65	120	31	1.5	1.5	79.6	-	73	76	81	112	-	1.5	1.5	1.65

Message
