Product Introduction

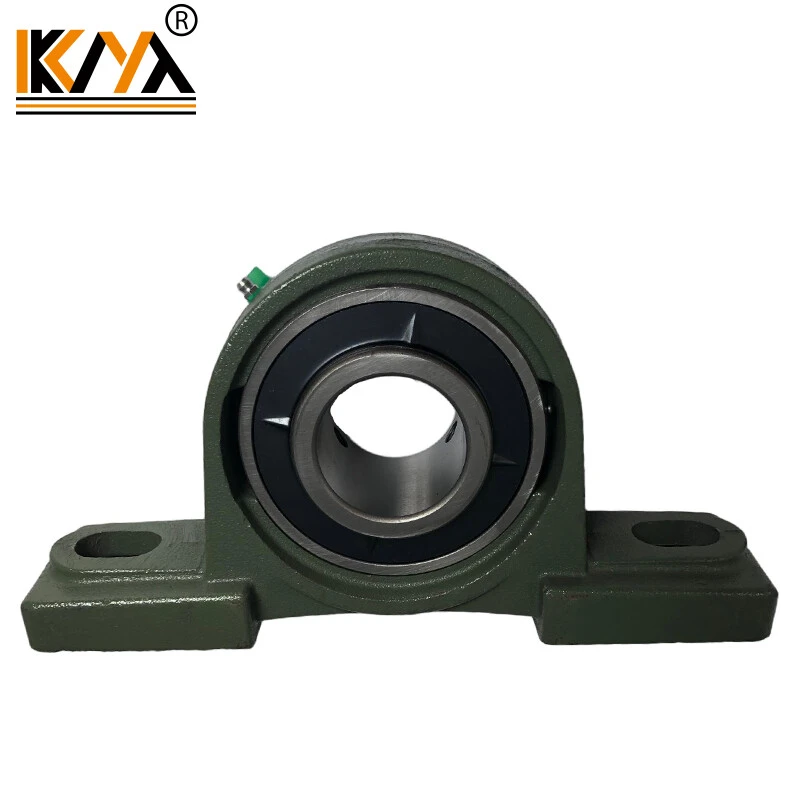

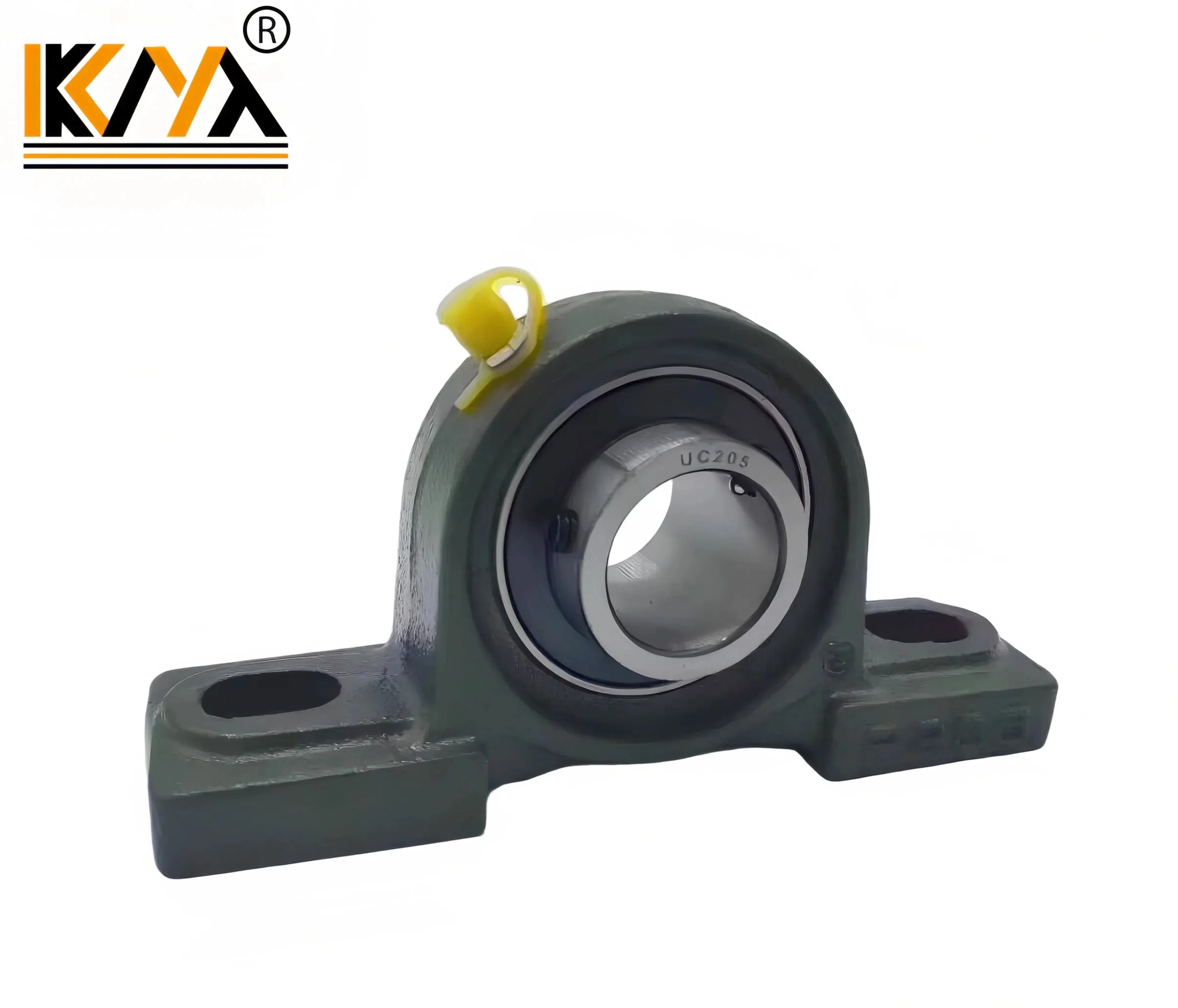

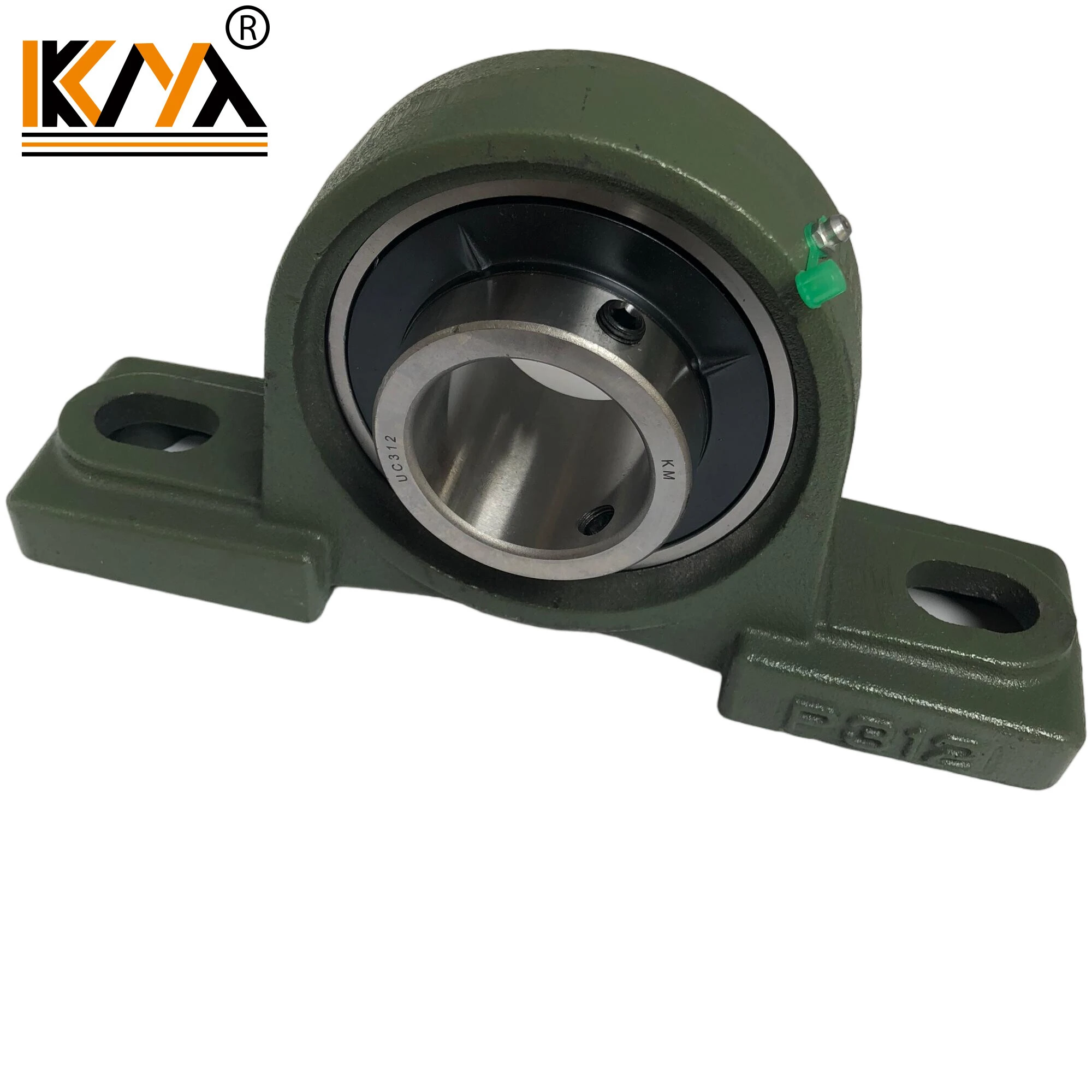

Housed bearing is a general term. Its usage varies depending on the usage environment (parts). The main categories are: P block (such as UCP), F, FL, T, FC, PA, PH, PB, FB, FC, FU, CC and other types. Bearings with seats are mainly composed of spherical bearings and different types of valve seats. After special tooling, the bearing and valve seat are installed together, which is a semi-separated unit. The outer spherical bearing with seat has been added with lubricating oil customized according to customer requirements before leaving the factory, and the grease nipple, grease nipple cover and wrench are attached with the goods, which is convenient for customers to install.


It is mainly used to bear combined radial and axial loads mainly based on radial loads. Generally, it is not suitable to bear the axial load alone. This type of bearing can be equipped with inner ring (full set of rollers and cage) and outer ring respectively.


Wide range of applications:

For example agricultural machinery, construction machinery, food machinery, amusement equipment, metallurgical equipment, fans, injection molding machine accessories, textile equipment and equipment, deep hole drilling machines, sand mills, dehumidifiers, sewage treatment equipment, frequency conversion pumps, glazing machines, manufacturing Pill machine, tea restaurant equipment, recycling crusher, cutting machine, rolling guide, food sterilization equipment, filling machine, electronic component forming machine, open chiller, steel bar cutting machine.


Unit No.

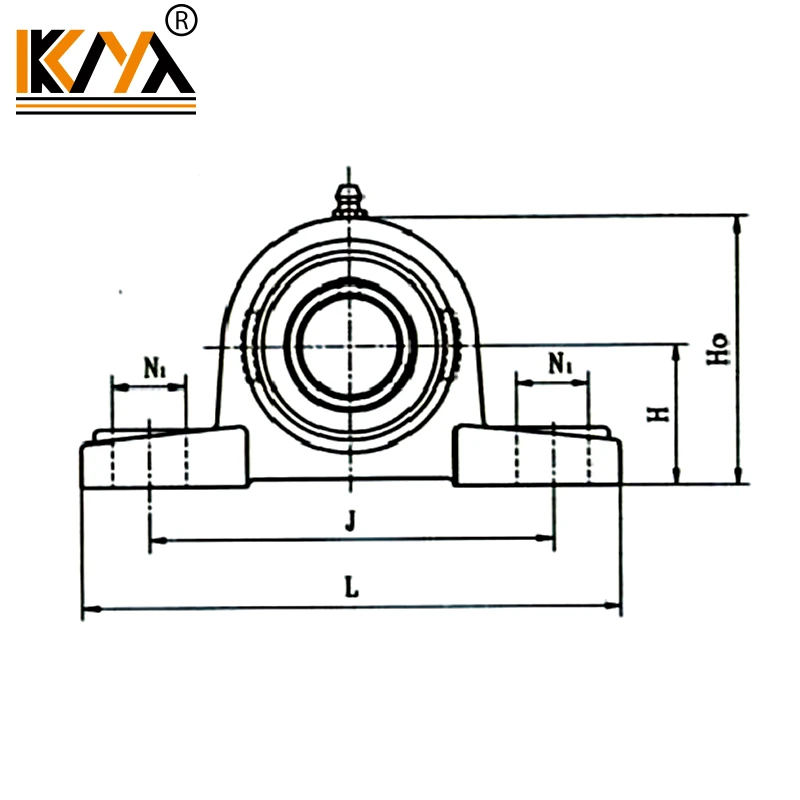

Dimensions(mm)

Tapped Holes(M)

Bearing No.

Housing No.

Mass(kg)


d

H

L

J

A

H0

S

B

F





UCPA203

17

30.2

70

48

36

57

11.5

27.4

10

M8

UC203

PA203

0

UCPA204

20

30.2

76

52

40

62

12.7

31

13

M10

UC204

PA204

0.6

UCPA205

25

36.5

84

56

38

72

14.3

34

15

M10

UC205

PA205

0.8

UCPA206

30

42.9

94

66

48

84

15.9

38.1

18

M14

UC206

PA206

1.2

UCPA207

35

47.6

110

80

48

95

17.5

42.9

20

M14

UC207

PA207

1.7

UCPA208

40

49.2

116

84

54

100

19

49.2

20

M14

UC208

PA208

2

UCPA209

45

54.2

120

90

60

108

19

49.2

25

M14

UC209

PA209

2.2

UCPA210

50

57.2

130

94

60

116

19

51.6

25

M16

UC210

PA210

2.8

UCPA211

55

63.5

140

104

66

125

22.2

55.6

25

M16

UC211

PA211

3

UCPA212

60

69.9

150

114

68

138

25.4

65.1

25

M16

UC212

PA212

4.24

UCPA213

65

76.2

160

124

70

150

25.4

65.1

25

M16

UC213

PA213

6
