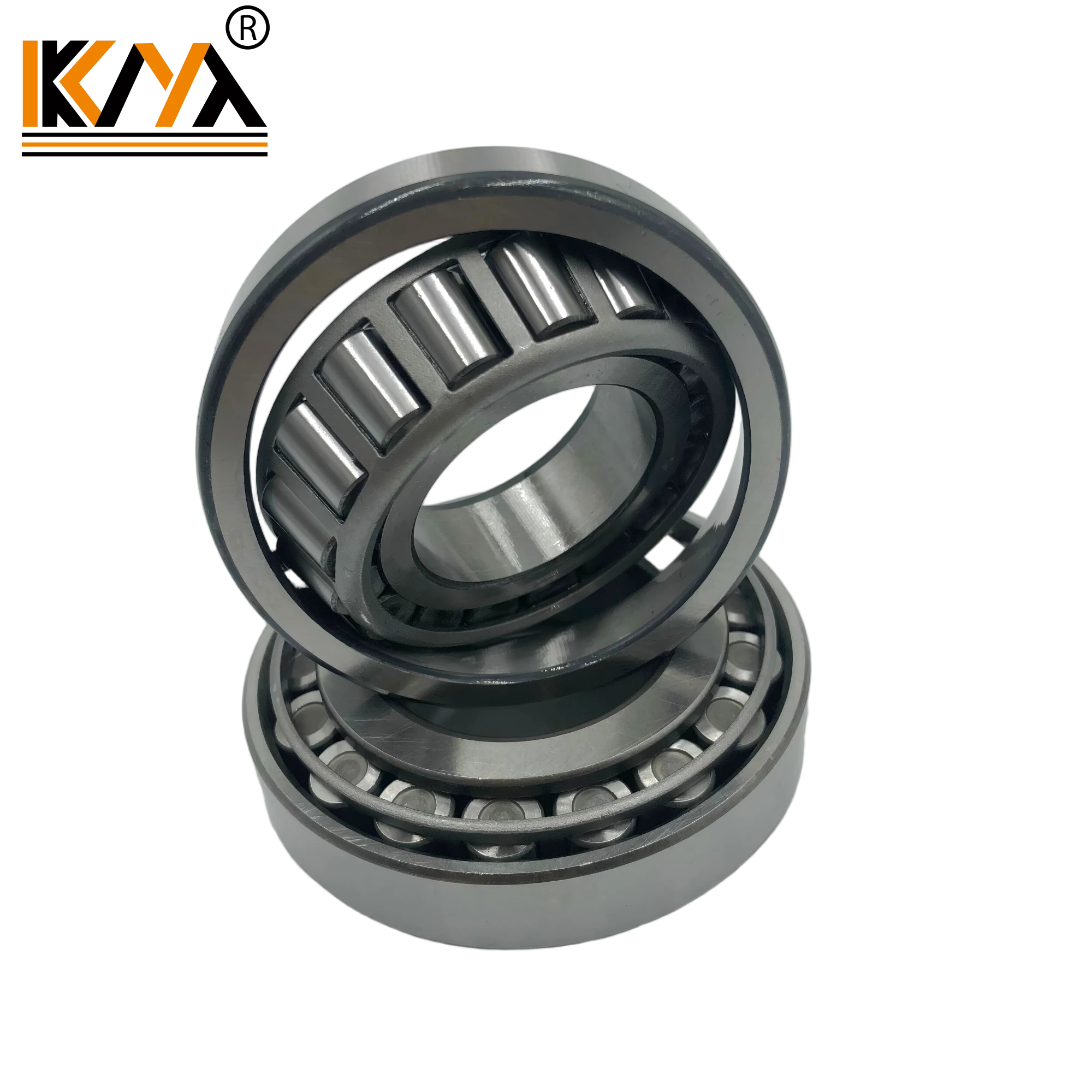

Non-standard TaperRoller Bearing

Tel：+86 18663554522

WhatsApp：+86 18663554522

Email：admin@kmbearings.com

MESSAGE

Product Introduction

Taper roller bearings mainly bear combined radial and axial loads, and the axial bearing capacity depends on the angle of the outer race raceway. The larger the angle, the greater the bearing capacity. Double row and four row tapered roller bearings can withstand radial and axial combined loads mainly in the radial direction, and can withstand axial loads in both directions. They are generally suitable for medium and low-speed applications.

Product Parameters

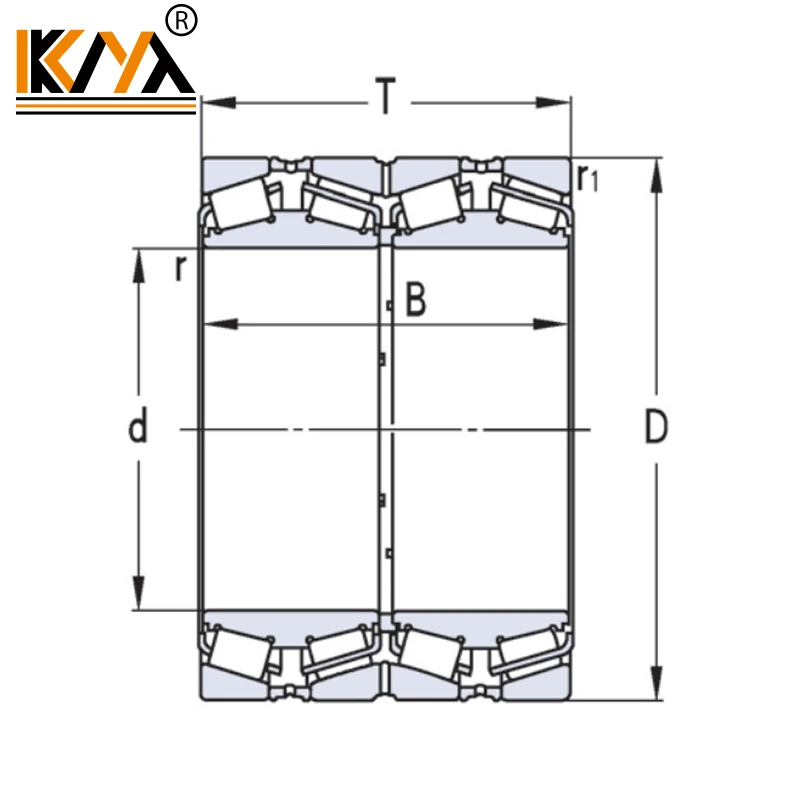

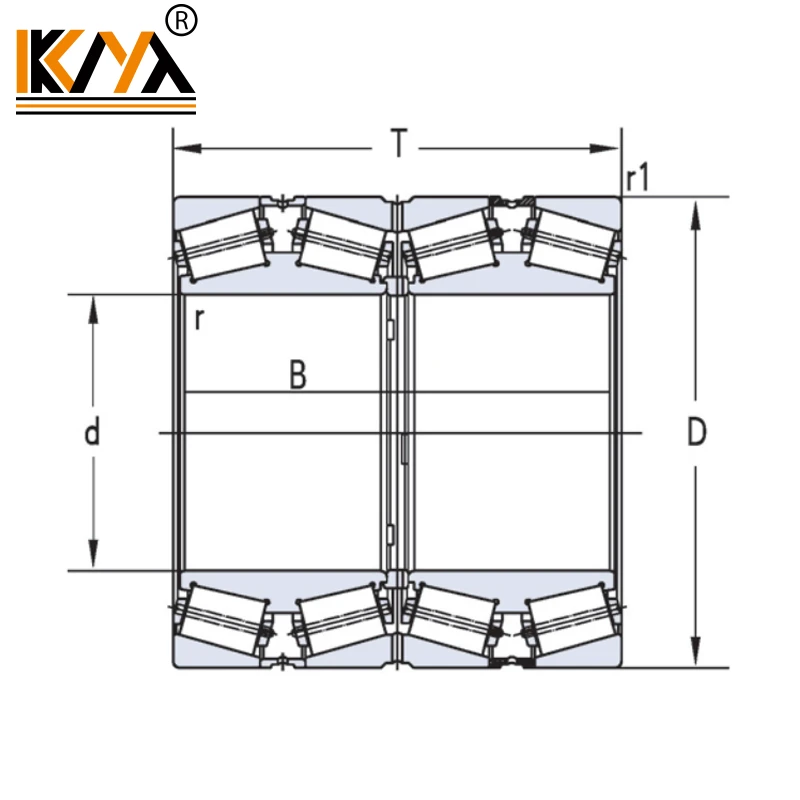

Bearing Model	Dimension(d×D×B)	Weight(KG)
T2CD018	90×140×36.4	1.92
02474/02420	28.575×68.262×22.225	0.406
02475/02420	31.75×68.262×22.225	0.375
02476/02420	31.75×68.262×22.225	0.378
02872/20	28.575×73.025×22.225	0.476
T4AA045R-1	45×106×20.75	0.778
09067/195	19.05×49.225×18.034	0.176
09081/195	20.625×49.225×19.845	0.177
JP10049/10	100×145×24	1.17
LM102949/10	45.242×73.431×19.558	0.303
LM102949/11	45.242×73.431×21.43	0.33
JLM104947A/10	50×82×21.976	0.434
JLM104948/10	50×82×21.5	0.422
JLM104946/10	50×82×21.5	0.435
LM104949/11	50.8×82.55×21.59	0.42
LM104949/11A	50.8×82.55×23.622	0.42
LM104949/12	50.8×82.931×21.59	0.426
LM104949AC/11AS	50.8×82.55×21.59	0.425
LM104949AC/11AC	50.8×82.659×21.59	0.426
LM11749/10	17.462×39.878×13.843	0.0821
LM11949/10	19.05×45.237×15.494	0.124
M12649/10	21.43×50.005×17.526	0.173
LM12748/11	21.43×46×15.494	0.118
LM12748/10	21.43×45.237×15.494	0.118
LM12749/10	22×45.237×15.494	0.115
LM12749/11	22×46×15.494	0.12
13C	49.225×11.509	0.056
JP13049A/10	130×185×29	2.2
TR131305R	65×130×51	2.94
13685/21	38.1×69.012×19.05	0.29
13686/20	38.1×69.012×26.195	0.356
13687/20	38.1×69.012×19.05	0.297
13687/21	38.1×69.012×19.05	0.293
T4CB140/P6X	140×195×29	2.38
14XS	57.092×17.094	0.174
14116/276	30.226×69.012×19.845	0.365
14123A/276	31.75×69.012×26.982	0.394
14124/276	31.75×69.012×19.845	0.354
14131/276	33.338×69.012×19.845	0.341
14136A/276	34.925×69.012×26.853	0.361
14125A/276	31.750×69.012×19.845	0.349
14137A/276	34.925×69.012×19.845	0.325
14138A/274	34.925×69.012×19.845	0.319
14138A/276	34.925×69.012×19.845	0.325
14585/14525	34.925×68.262×20.638	0.317
15101/245	25.400×62.000×19.050	0.287
15100/245	25.400×62.000×19.050	0.285
15103S/245	26.162×62.000×19.05	0.279
15106/250X	26.988×63.5×20.638	0.308
15112/15245	28.575×62×19.05	0.263
15113/245	28.575×62×19.05	0.266
15116/245	30.112×62×19.05	0.254
15117/245	29.987×62×19.05	0.256
15118/245	30.213×62×19.05	0.285
15120/250	30.213×63.5×20.638	0.254
15125/245	31.75×62×19.05	0.238
15126/245	31.75×62×19.05	0.242
15123/243	31.75×61.912×18.161	0.241
15123/245	31.75×61.912×18.161	0.241
15123S/245	31.75×62×18.161	0.243
15578/20	25.4×57.15×17.462	0.212
15579X/20	26×57.15×17.462	0.207
15580/20	26.988×57.15×17.462	0.201
J15585/20	25.4×57.15×17.462	0.212
15590/20	28.575×57.15×17.462	0.191
16137/16282	34.925×72×19	0.36
16150/16282	38.1×72×19	0.33
16150/16284	38.1×72.238×20.638	0.353
J16154/J16285	39×72.014×21.4	0.35
CBK172	40×70×17	0.266
1755/1729	22.225×56.896×19.368	0.258
1779/29	23.812×56.896×19.368	0.25
1780/29	25.4×56.896×19.368	0.24
17887/31	45.23×79.985×19.842	0.41
18590/20	41.275×73.025×16.667	0.28
1986/32	25.4×58.738×19.05	0.251
21075/212	19.05×53.975×22.225	0.247
JH211749/10	65×120×39	1.87
HM212044/11	60.325×122.238×38.1	2.02
HM212046/11	63.5×122.238×38.1	1.95
HM212047/10	63.5×122.238×38.1	1.84
HM212047/11	63.5×122.238×38.1	1.84
HM212049/11	66.675×122.238×38.1	1.85
HM212049/10	66.675×122.238×38.1	1.86
HM212049X/11	66.675×122.238×38.1	1.83
L21549/11	15.875×34.988×10.988	0.0475
HM218238A/10AW	79.974×150×42	3.14
HM218248/10	89.974×146.975×40	2.45
HM220149/10	99.974×156.975×42	2.86
LL225749/10	127×165.895×18.258	0.914
23100/23256	25.4×65.088×22.225	0.358
24780/20	41.275×76.2×22.225	0.424
24780/21	41.275×76.2×25.4	0.462
2580/23	31.75×69.85×23.812	0.448
2580/20	31.75×66.421×25.4	0.401
2585/20	33.338×66.421×25.4	0.382
26882/20	41.275×80.167×25.4	0.401
26882/22	41.275×80.167×25.4	0.553
26884/23	42.875×76.2×25.4	0.46
2780/20	36.487×76.2×23.812	0.514
2785/20	33.338×76.2×23.812	0.544
2788/20	38.1×76.2×23.812	0.49
2788A/20	38.1×76.2×23.812	0.495
2788/29	39.1×76.2×23.812	0.496
2789/29	39.688×76.2×23.812	0.477
2790/29	33.338×76.2×23.812	0.555
2793/20	34.925×76.2×23.812	0.53
2793X/35X	34.925×73.025×23.812	0.481
2796/20	34.925×76.2×23.812	0.527
25570/25520	36.513×82.931×23.812	0.651
25572/25520	38.1×82.931×23.812	0.642
25577/21	42.875×83.058×23.812	0.572
25577/22	42.875×83.058×23.876	0.576
25577/23	42.875×82.913×26.988	0.622
25578/20	42.862×82.931×23.812	0.581
25580/20	44.45×82.931×23.812	0.561
25584/20	44.938×82.931×23.812	0.552
25590/25519	45.618×82.55×23.812	0.53
25590/20	45.618×82.931×23.812	0.54
25877/20	34.925×73.025×23.812	0.466
25878/20	34.925×73.025×23.812	0.462
25877A/21	34.925×73.025×23.812	0.47
25880/25820	36.487×73.025×23.812	0.449
25880/25821	36.487×73.025×23.812	0.451
26882/20	41.275×80.167×25.4	0.553
26884/23	42.875×76.2×25.4	0.46
26886/20	42.875×80.167×25.4	0.537
27684/20	76.2×125.412×25.4	1.23
27687/20	82.55×125.412×25.4	1.08
27690/20	83.345×125.412×25.4	1.05
27880/20	38.1×80.035×24.608	0.563
28579/21	49.987×92.075×24.608	0.708
28580/21	50.8×92.075×24.608	0.695
28584/20	52.38×89.98×24.75	0.618
28584/21	52.388×92.075×24.608	0.668
28678/22B	50.800×101.498×24.608	0.865
28680/22	55.562×97.63×24.608	0.782
28680/23	55.562×98.425×24.608	0.8
28682/22	57.15×97.63×24.608	0.755
28985/21	60.325×100×25.4	0.75
28985/20	60.325×101.6×25.4	0.79
28995/21	62.738×100×25.4	0.706
29585/20	63.5×107.95×25.4	0.929
29586/22	63.5×107.95×25.4	0.945
29590/21	66.675×110×25.4	0.925
29590/22	66.675×107.95×25.4	0.874
29675/20	69.85×112.712×25.4	0.937
29675/30	69.85×120.65×25.4	1.15
29685/20	73.025×112.712×25.4	0.861
717813-4	71.6×115(121)×74.2	2.62
LM29748/10	38.1×65.088×18.034	0.233
LM29749/11	38.1×65.088×19.812	0.251
LM300849/11	41×68×17.5	0.242
302/32	32×65×18.25	0.261
302/32AX	44.5×65×27.25	0.306
31594/20	34.925×76.2×29.37	0.632
32408X3B	40×105×45	2
BT1B328053	41×68×19	0.256
BT1B329013A/Q	29×50.292×14.224	0.12
717813-2	68.6×115(121)×180.112	6.99
717813-3	71.6×115(121)×180.112	6.92
33275/462	69.85×117.475×30.162	1.28
33275/472	69.85×120×29.794	1.37
33281/462	71.438×117.475×30.162	1.24
33287/33462	73.025×117.475×30.162	1.25
33281/472	71.438×120×29.794	1.33
33895/33822	53.975×95.25×27.738	0.812
33885/22	44.45×95.25×27.738	0.977
33889/21	50.8×95.25×27.738	0.862
33891/21	52.388×95.250×27.738	0.832
3476/20	31.75×79.375×29.37	0.745
3478/20	34.925×79.375×29.37	0.703
3490/20	38.1×79.375×29.37	0.661
3577/3520	41.275×84.138×30.162	0.752
3578/20	44.45×84.138×30.162	0.7
3579/25	42.862×87.312×30.162	0.806
3585/3525	41.275×87.312×30.162	0.835
3379/20	34.925×80.167×29.37	0.729
3381/20	38.100×80.167×29.370	0.685
3382/20	39.688×80.167×29.370	0.662
3386/20	39.688×80.167×29.370	0.666
36X	64.287×13.096	0.1
367/362	45.000×90.000×20.000	0.601
368/363	50.800×90.000×20.000	0.557
368/362X	50.800×90.000×25.000	0.594
368/362X	50.8000×88.9×20.638	0.513
368S/362A	51.592×88.900×20.638	0.502
37425/625	107.950×158.750×23.020	1.38
3767/20	52.388×93.264×30.162	0.795
3776/20	44.983×93.264×30.162	0.927
3780/20	50.800×93.264×30.162	0.825
3782/3730	44.450×93.264×30.162	0.945
38A	69.85×23.368	0.305
385A/382A	50.800×96.838×21.000	0.693
386A/382A	47.625×96.838×21.000	0.72
387/382	57.150×98.425×21.000	0.649
387A/382	57.150×98.425×21.000	0.646
387A/382S	57.150×96.838×25.400	0.666
387A/382A	57.150×96.838×21.000	0.599
387AS/382A	57.150×96.838×21.000	0.593
387S/383A	57.150×100.00×21.000	0.682
389A/383A	53.975×100.00×21.000	0.729
3872/20	34.925×85.725×30.162	0.88
3877/20	41.275×85.725×30.162	0.793
390A/394A	63.500×110.000×22.000	0.845
390A/394AB	63.500×114.673×22.000	0.876
390/394A	57.15×110×22	0.947
717813	63.500×114.673×60.177	2.25
395/394A	63.50×110.000×22.000	0.84
395A/394A	66.675×110.000×22.000	0.791
395S/394A	66.675×110.000×22.000	0.784
399AS/394A	68.262×110.000×22.000	0.747
39250/412	63.500×104.775×21.433	0.685
39580/39528	57.150×119.985×32.75	1.74
39580/39520	57.150×112.712×30.162	1.38
39581/20	57.150×112.712×30.162	1.36
39585/39520	63.500×112.712×30.162	1.24
39590/39520	66.675×112.712×30.162	1.16
39590/39521	66.675×112.712×30.162	1.18
3975/20	50.800×112.713×30.163	1.49
3979/20	57.150×112.713×30.163	1.36
3982/20	63.50×112.713×30.162	1.22
392/3920	61.912×112.712×26.967	1.05
717813-1	63.525×115(121)×167.125	6.11
7913	66.675×112.713×30.163	1.14
3994/20	66.675×112.713×30.162	1.13
3992/20	66.675×112.713×29.337	1.13
4A/6	19.050×44.450×12.700	0.0913
418/412	38.100×82.550×34.925	0.79
418/414	38.100×88.500×26.988	0.831
420/414	40.000×88.500×26.988	0.805
438/432	44.45×95.25×27.783	0.93
42368/584	93.662×148.430×28.575	1.75
42375/584	95.250×148.430×28.575	1.7
42381/42584	96.838×148.43×28.575	1.64
4388/4335	41.275×90.488×39.688	1.25
4395/4335	42.070×90.488×39.688	1.23
44162/348	41.275×88.500×25.400	0.679
L44642L/L44610	25.400×50.292×15.875	0.132
L44643/10	25.400×50.292×14.224	0.129
L44643A/10	25.400×50.292×23.000	0.178
L44643L/10	25.4×50.292×14.224	0.134
L44649/10	26.988×50.29×14.224	0.122
45280/20	44.45×104.775×30.162	1.33
45282/20	47.625×104.775×30.162	1.27
45284/20	50.8×104.775×30.162	1.2
45285A/20	50.8×104.775×30.162	1.21
4580/4535	50.8×104.775×39.688	1.62
45291/20	57.15×104.775×30.162	1.07
L45449/10	29×50.292×14.224	0.113
46	79.375×13.208	0.168
455/453A	50.8×107.95×27.783	1.25
455S/453X	50.8×104.775×30.162	1.19
455/454	50.8×110.000×27.795	1.36
460/453A	44.45×107.95×27.783	1.35
7911	57.15×104.775×30.162	1.07
469/453A	57.15×107.95×27.783	1.12
469/453X	57.15×104.775×30.162	1.06
47	87.313×25.654	0.557
47487/20	69.85×120×32.545	1.47
47487/20A	69.85×120×32.545	1.48
47490/20	71.438×120×32.545	1.43
47679/20	76.2×133.35×33.338	1.96
47686/20	82.55×133.35×33.338	1.75
47686/20A	82.55×133.35×33.338	1.77
47687/20	82.55×133.35×33.338	1.73
480/472	68.262×120×29.794	1.36
482/472	69.85×120×29.794	1.32
484/472	70×120×29.794	1.32
LM48548/10	34.925×65.088×18.034	0.257
LM48584/11A	34.925×65.088×21.082	0.283
49162/368	41.275×93.663×31.75	1.05
49175/368	44.45×93.663×31.75	0.998
495/493	82.55×136.525×30.162	1.64
495A/493	76.2×136.525×30.162	1.83
495AX/493	76.2×136.525×30.162	1.81
496/493	80.962×136.525×30.162	1.69
497/492A	85.725×133.35×30.162	1.43
497/493	85.725×136.525×30.162	1.55
498/492A	84.138×133.35×30.162	1.48
498/493	84.138×136.525×30.162	1.59
LM501349/10	41.275×73.431×19.558	0.333
LM501349/11	41.275×73.431×23.012	0.371
LM501349/14	41.275×73.431×21.43	0.353
LM503349A/10	45.987×74.976×18	0.295
JLM506849/10	55×90×23	0.551
JLM506849A/11	55×90×25	0.576
JLM508748/10	60×95×24	0.59
JM511945/10	65×110×28	1.08
JM511946/10	65×110×28	1.06
JM515649/10	80×130×35	1.71
HM516448/10	82.55×133.35×39.688	2.14
HM516449A/10	82.55×133.35×39.688	2.15
HM518445/10	88.9×152.4×39.688	2.82
L521949/10	107.95×146.05×21.433	0.977
53176/387	44.45×98.425×30.958	1.01
L540049/10	196.85×254×28.575	3.42
57410S/LM29710S	38.1×65.088×18.034	0.242
57414/LM300811	41×68×17.5	0.243
55175C/55437	44.45×111.125×30.162	1.44
55200C/55437	50.8×111.125×30.162	1.34
55206C/55437	52.388×111.125×30.162	1.31
555S/552A	57.15×123.825×38.1	2.16
555/552A	50.80×123.825×38.1	2.31
557S/552A	53.975×123.825×38.1	2.24
558A/552A	60.325×123.825×38.1	2.08
559/552A	63.5×123.825×38.1	1.99
566/563	69.85×127×36.512	1.92
567/563	73.025×127×36.512	1.82
568/563	73.817×127×36.512	1.8
575/572	76.2×139.992×36.512	2.39
575/572X	76.2×139.7×36.512	2.374
576/572	73.025×139.992×36.512	2.49
580/572	82.55×139.982×36.512	2.17
580/572A	82.55×139.982×35.25	2.14
580/572X	82.55×139.7×36.512	2.15
582/572	82.55×139.992×36.512	2.14
593A/592A	88.9×152.4×39.688	2.75
593/592A	88.9×152.4×39.688	2.77
594/592A	95.25×152.4×39.688	2.51
594A/592A	95.25×152.4×39.688	2.5
594R/592A	95.25×152.4×39.688	2.47
596/592A	85.725×152.4×39.688	2.89
598/592A	92.075×152.4×39.688	2.64
598A/592A	92.075×152.4×39.688	2.62
598AW/592A	92.075×152.4×39.688	2.67
598A/593X	92.075×150×35.992	2.33
6	44.45×9.525	0.0353
6CE	49.146×19.05	0.132
LM603049/11	45.242×77.788×19.842	0.358
LM603049/12	45.242×77.788×21.43	0.377
LM603049A/14	45.242×80×19.842	0.395
JW6049/10	60×125×37	2.04
L610549/10	63.5×94.458×19.05	0.451
6386/20	66.675×135.755×53.975	3.57
641/632	66.675×136.525×41.275	2.75
643/632	69.85×136.525×41.275	2.64
64450/64700	114.3×177.8×41.275	3.55
6461A/20	76.2×149.725×53.975	4.25
JH415647/10	75×145×51	3.8
6580/35	88.9×161.925×53.975	4.71
655/653	69.850×146.05×41.275	3.24
663/653	82.55×146.05×41.275	2.75
663/652	82.55×152.4×41.275	3.12
665/653	85.725×146.05×41.275	2.61
665A/653	85.725×146.05×41.275	2.59
LM67045/10	31.75×59.131×15.875	0.191
LM67048L/LM67010A	31.75×59.131×15.875	0.19
LM67048/LM67010	31.75×59.131×15.875	0.179
LM67049A/10	31.75×59.131×15.875	0.184
67989/20	209.55×282.575×46.038	7.83
L68149/10	34.988×59.131×15.875	0.17
JL68145/11Z	35×60×15.875	0.185
L68149/L68111	34.988×59.974×15.875	0.177
68462/712	117.475×180.975×34.925	2.8
683/672	95.25×168.275×41.275	3.74
687/672	101.6×168.275×41.275	3.43
JL69349/10	38×63×17	0.196
JM710949C/10	65×105×24	0.749
JM714249/10	75×120×31	1.28
JM207049A/10	55×95×29	0.806
71450/750	114.3×190.5×47.625	5.14
71455/750	115.087×190.5×47.625	5.04
H715334/11	61.912×136.525×46.038	3.46
H715332/11	60.325×136.525×46.038	3.52
JM716649/10	85×130×30	1.39
JM718149A/10	90×145×35	2.08
JHM720249/10	100×160×41	3.05
72188C/72487	47.625×123.825×36.512	2.18
72200C/487	50.8×123.825×36.512	2.08
72212C/487	53.975×123.825×36.512	2.02
72218C/487	55.562×123.825×36.512	1.98
72225C/487	57.15×123.825×36.512	1.94
TR101204/72487	50×123.825×36.512	2.1
NP723977/NP751735	68.262×136.525×46.038	3.22
LM72849/10	22.6×47×15.5	0.124
JLM736149/10	180×250×47	6.62
740/742	80.962×150.089×44.45	3.43
74550A/850	139.7×215.9×47.625	6
748S/742	76.2×150.089×44.45	3.65
749/742	85.026×150.089×44.45	3.24
749A/742	82.55×150.089×44.45	3.36
759/752	88.9×161.925×47.625	4.08
760/752	90.488×161.925×47.625	3.99
762/752	73.025×161.925×47.625	4.84
778/772	92.075×180.975×47.625	5.57
780/772	101.600×180.975×47.625	5.03
782/772	104.775×180.975×47.625	4.83
795/792	120.65×206.375×47.625	6.41
67388/20	127×203.20×46.038	5.61
LM78349/10A	35.000×62.000×16.7	0.208
527053/HM807010	54.500×104.775×36.512	1.38
HM807040/10	44.45×104.775×36.512	1.6
HM807044/10	49.212×104.775×36.512	1.5
HM807046/10	50.8×104.775×36.512	1.47
HM807049/10	53.975×104.775×36.512	1.39
HM803145/10	41.275×88.900×30.162	0.889
HM803146/10	41.275×88.9×30.162	0.886
HM803149/10	44.45×88.9×30.162	0.836
HM803149/12	44.45×92.075×30.162	0.919
HM804843/10	44.45×95.25×30.162	1.02
HM804848/10	48.412×95.25×30.162	0.96
M804049/10	47.625×88.89×25.4	0.66
NP804861/H914811	68.262×152.4×47.625	4.51
JLM813049/10	70×110×26	0.869
HM813841/10	60.325×127×36.512	2.19
HM813843/10	61.912×127×36.512	2.15
HM813844/10	66.675×127×36.512	2
HM813849/10	71.438×127×36.512	1.86
LM814849/10	77.788×117.475×25.4	0.907
JL819349/10	95×135×20	0.84
JHM840449/10	200×300×65	15.6
M802048/11	41.275×82.55×26.543	0.615
M84548/M84510	25.4×57.15×19.431	0.236
M86649/M86610	30.162×64.292×21.433	0.337
M88048/M88010	33.338×68.262×22.225	0.382
M88046/10	31.75×68.262×22.225	0.398
HM88542/10	31.75×73.025×29.37	0.613
HM88542/11	31.75×73.025×29.37	0.62
HM88547/10	33.338×73.025×29.37	0.596
HM88648/10	35.717×72.233×25.4	0.469
HM88649/10	34.925×72.233×25.4	0.479
HM89249/10	36.512×79.375×29.37	0.691
HM89440/10	31.75×76.2×29.37	0.68
HM89443/10	33.338×76.2×29.37	0.662
HM89446/10	34.925×76.2×29.37	0.64
HM89448/10	36.512×76.2×29.37	0.623
HM89449/10	36.512×76.2×29.37	0.62
HM89449/11	36.512×76.2×29.37	0.628
909001R	19.057×52.832×17.983	0.176
TR9015038	90×150×38	2.53
TR9516042	95×160×42	3.22
HM903245/10	41.275×95.25×30.958	1.03
HM903249/10	44.45×95.25×30.958	0.987
909052R	32.55×75.26×29.083	0.485
HM911242/10	53.975×130.175×36.512	2.19
HM911244/16	59.987×134.983×33.449	2.09
9278/20	68.262×161.925×49.212	4.54
BS500192S	45×100×25	0.977
ST4276C/A	42×76×23.8	0.496
DTP0902-1	53.975×95.215×38.1	1.14
NP656227/NP896049	39.688×80.167×29.37	0.679
4302712	38×83×25.4	0.66
BS226539V	38×83×25.4	0.677
67784	69.865×117(126)×63.774	2.61
4856	69.85×112.712(116.586)×76.32	2.53
21355	63.515×117(126)×54.65	2.88
35286	69.865×117(126)×71.7	2.91
BS225977	35×72×20.6	0.41
48190/48220	107.95×161.925×34.925	2.35
48290/48220	127×182.562×39.688	3.27
48393/48220	136.526×190.50×39.688	3.35
34300/34478	76.20×121.442×24.608	0.96
52400/52618	101.6157.16236.512	2.39

Message
