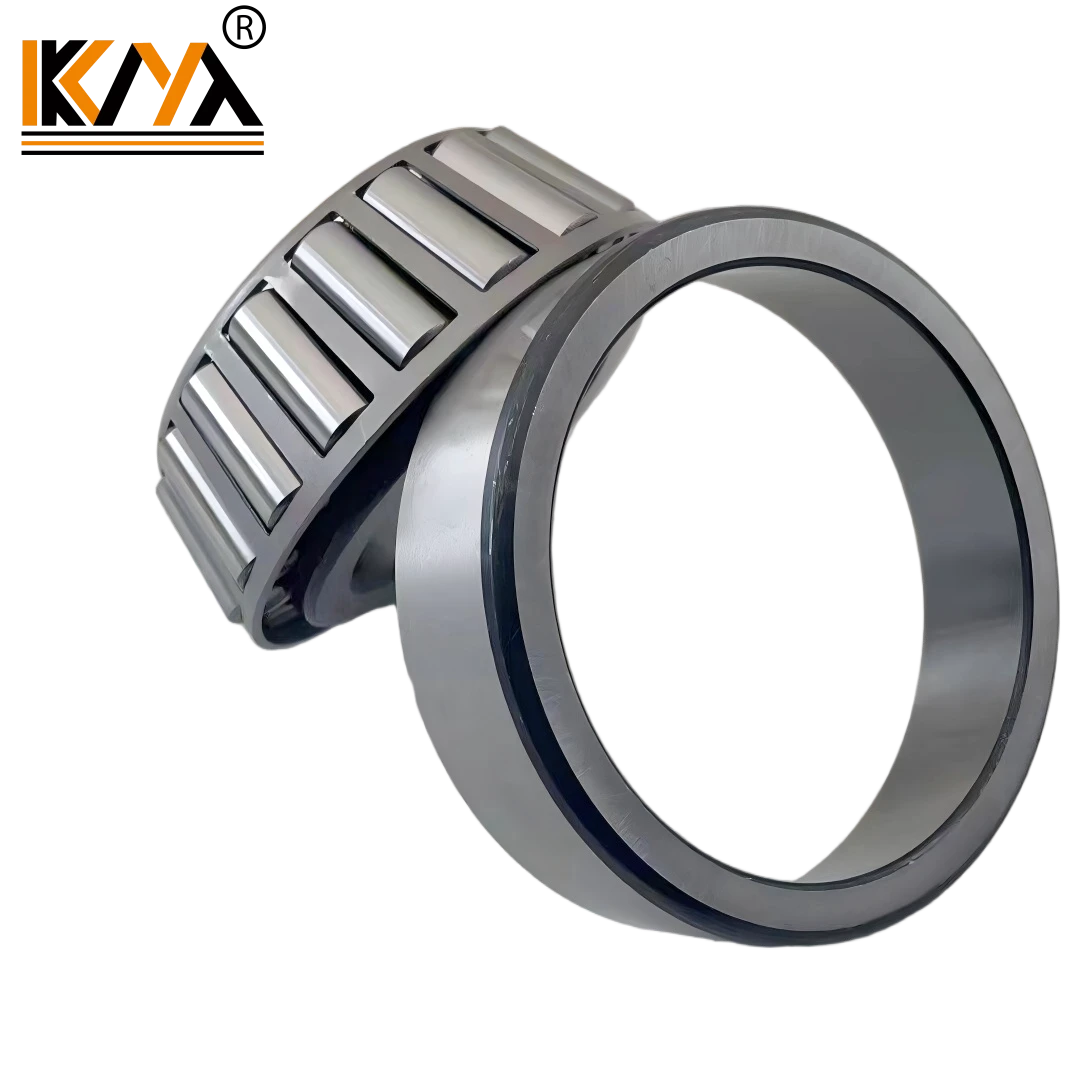

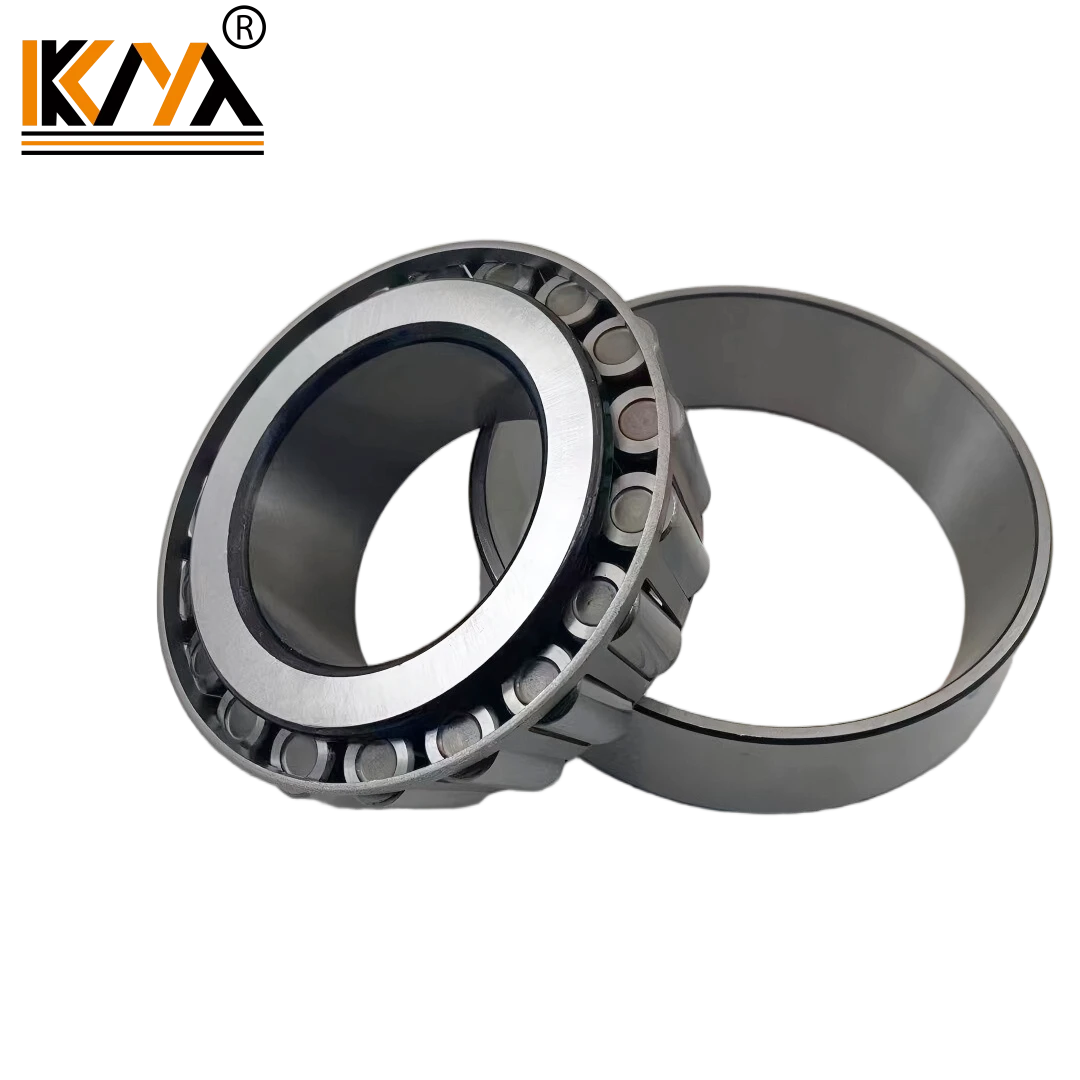

Single row taper roller bearing

Tel：+86 18663554522

WhatsApp：+86 18663554522

Email：admin@kmbearings.com

MESSAGE

Product Introduction

Taper roller bearings mainly bear combined radial and axial loads, and the axial bearing capacity depends on the angle of the outer race raceway. The larger the angle, the greater the bearing capacity.

Double row and four row tapered roller bearings can withstand radial and axial combined loads mainly in the radial direction, and can withstand axial loads in both directions. They are generally suitable for medium and low-speed applications.

Product Parameters

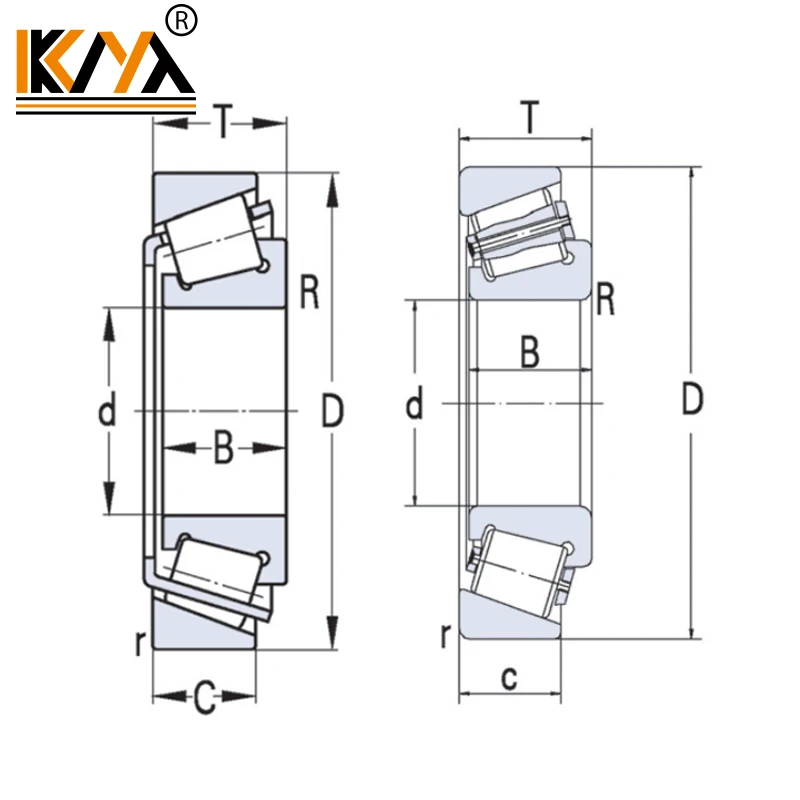

Bearing code	Basic dimensions (mm)									Calculate coefficient				Weight (Kg)
Bearing code	d	D	T	B	C	RRadial	RAxial	RRadial	RAxial	e	Y	Yo	a	Weight (Kg)
30204X2/P6XYB5	20	47	15	14	12	1	1	1	1	0.35	1.7	0.96	11	0.123
30204	20	47	15.25	14	12	1	1	1	1	0.35	1.7	0.96	11	0.121
30204/YA8	20	47	15.25	14	12	1	1	1	1	0.35	1.7	0.96	11	0.124
32204	20	47	19.25	18	15	1	1	1	1	0.33	1.8	1	12	0.158
30304	20	52	16.25	15	13	1.5	1.5	1.5	1.5	0.3	2	1.1	11	0.167
32304	20	52	22.25	21	18	1.5	1.5	1.5	1.5	0.3	2	1.1	13	0.238
33005	25	47	17	17	14	0.6	0.6	0.6	0.6	0.29	2.1	1.14	11	0.129
30205	25	52	16.25	15	13	1	1	1	1	0.37	1.6	0.88	12	0.16
30205/YA8	25	52	16.25	15	13	1	1	1	1	0.37	1.6	0.88	12	0.166
32205	25	52	19.25	18	16	1	1	1	1	0.36	1.7	0.92	13	0.199
33205	25	52	22	22	18	1	1	1	1	0.35	1.7	0.94	14	0.216
30205X2	25	52	23.75	22.5	13	5.5	5.5	1	1	0.37	1.6	0.88	12	0.2
31305A	25	62	18.25	17	13	1.5	1.5	1.5	1.5	0.55	1.1	0.61	16	0.268
30305	25	62	18.25	17	13	1.5	1.5	1.5	1.5	0.3	2	1.1	12	0.25
30305X2	25	62	18.25	17	15	1.5	1.5	1.5	1.5	0.3	2	1.1	13	0.267
32305	25	62	25.25	24	20	1.5	1.5	1.5	1.5	0.3	2	1.1	15	0.422
320/28/YB2	28	52	16	16	12	3.4	3.6	1	1	0.43	1.4	0.77	13	0.145
320/28	28	52	16	16	12	1	1	1	1	0.43	1.4	0.77	13	0.145
32006/P6XYB5	30	55	17	17	13	1	1	1	1	0.43	1.4	0.8	13	0.171
30206	30	62	17.25	16	14	1	1	1	1	0.37	1.6	0.88	14	0.23
32206	30	62	21.25	20	17	1	1	1	1	0.37	1.6	0.88	15	0.356
32206/YA8	30	62	21.25	20	17	1	1	1	1	0.37	1.6	0.88	15	0.366
33206	30	62	25	25	19.5	1	1	1	1	0.34	1.8	0.97	16	0.343
3306B/HAP5	30	72	20.75	19	14	1.5	1.5	1.5	1.5	0.55	1.1	0.6	18	0.37
31306B/P6X	30	72	20.75	19	14	1.5	1.5	1.5	1.5	0.55	1.1	0.6	18	0.37
30306	30	72	20.75	19	16	1.5	1.5	1.5	1.5	0.31	1.9	1.05	15	0.39
30306/HA	30	72	20.75	19	16	1.5	1.5	1.5	1.5	0.31	1.9	1.05	15	0.397
30306/HAP6X	30	72	20.75	19	16	1.5	1.5	1.5	1.5	0.31	1.9	1.05	15	0.397
31306WB1	30	72	20.75	20	14	1.5	1.5	1.5	1.5	0.83	0.7	0.4	34	0.489
3306X2A/HAP5-1	30	72	24	23	16.5	1.5	1.5	1.5	1.5	0.62	1	0.53	21	0.455
31306X2A	30	72	24.35	23	18	1.5	1.5	1.5	1.5	0.55	1.1	0.6	20	0.489
32306	30	72	28.75	27	23	1.5	1.5	1.5	1.5	0.31	1.9	1.05	18	0.554
T5FD032	32	75	29.75	28	23	1.5	1.5	1.5	1.5	0.55	1.1	0.6	23	0.647
302/32X2/YA6	32	65	27.5	26	15	-	-	1	1	-	-	-	-	-
32007	35	62	18	18	14	1	1	1	1	0.45	1.3	0.73	15	0.384
30607	35	65	18	18	14	3.5	3.5	1.2	1.2	0.38	1.6	0.88	14	0.229
30607-1	35	65	18	18	14	3.5	3.5	1.5	1.5	0.33	1.8	0.99	13	0.251
30207	35	72	18.25	17	15	1.5	1.5	1.5	1.5	0.37	1.6	0.88	15	0.318
32207E/YA8	35	72	24.25	23	19	1.5	1.5	1.5	1.5	0.37	1.6	0.88	17	0.465
32207	35	72	24.25	23	19	1.5	1.5	1.5	1.5	0.37	1.6	0.88	17	0.452
33207	35	72	28	28	22	1.5	1.5	1.5	1.5	0.35	1.7	0.93	18	0.519
31307	35	80	22.75	21	15	2	2	1.5	1.5	0.83	0.7	0.4	25	0.515
30307	35	80	22.75	21	18	2	2	1.5	1.5	0.31	1.9	1.05	16	0.515
32307A/HAP5	35	80	32.75	31	25	0.3	0.3	1.5	1.5	0.47	1.3	0.7	23	0.768
32307	35	80	32.75	31	25	2	2	1.5	1.5	0.31	1.9	1.05	20	0.755
32307/HAP6X	35	80	32.75	31	25	2	2	1.5	1.5	0.31	1.9	1.05	20	0.755
30207X1	35	80	18.25	17	15	1.5	1.5	1.5	1.5	0.37	1.6	0.88	17	0.43
32307X3A/HAP5	35	89	38	38	27.5	1	1	1.5	1.5	0.62	1	0.53	29	1.22
306/39X4	39.7	90	25.4	22	21	0.8	0.8	0.8	0.8	0.4	1.5	0.83	25	0.769
32008/P6X	40	68	19	19	14.5	1	1	1	1	0.38	1.6	0.87	15	0.297
32008	40	68	19	19	14.5	1	1	1	1	0.38	1.6	0.87	15	0.297
32008X1WC	40	72	19	19	16	1	1	1	1	0.38	1.6	0.87	16	0.315
32008X3	40	73	21	21	15.5	1	1	1	1	0.43	1.4	0.76	26	0.362
33108	40	75	26	26	20.5	1.5	1.5	1.5	1.5	0.35	1.7	0.9	18	0.499
30208	40	80	19.75	18	16	1.5	1.5	1.5	1.5	0.37	1.6	0.88	17	0.43
32208	40	80	24.75	23	19	1.5	1.5	1.5	1.5	0.37	1.6	0.88	18	0.561
33208X2A	40	80	30	29	23	2	2	2	2	0.43	1.4	0.77	21	0.669
33208	40	80	32	32	25	1.5	1.5	1.5	1.5	0.36	1.7	0.92	21	0.701
31308	40	90	25.25	23	17	2	2	1.5	1.5	0.83	0.7	0.4	29	0.731
30308	40	90	25.25	23	20	2	2	1.5	1.5	0.35	1.7	0.96	19	0.734
30308R/YA6	40	90	25.25	23	20	3	3	1.5	1.5	0.35	1.7	0.96	19	0.783
32308/YA8	40	90	35.25	33	27	1.8	1.8	1.8	1.8	0.35	1.7	0.96	22	1.02
32308	40	90	35.25	33	27	2	2	1.5	1.5	0.35	1.7	0.96	22	1.08
32308B	40	90	35.25	33	27	2	2	1.5	1.5	0.55	1.1	0.6	27	1.06
323/42R	42	100	38.25	36	30	2	2	1.5	1.5	0.35	1.7	0.96	25	1.55
32009	45	75	20	20	15.5	1	1	1	1	0.39	1.5	0.84	17	0.343
32009/HA	45	75	20	20	15.5	1	1	1	1	0.39	1.5	0.84	17	0.343
306/42	45	76	24	27.5	19.8	2	2	2	2	0.28	2.2	1.19	29	0.479
306/42	45	76	23.8	27.5	19.8	0.7	0.7	0.1	0.1	0.28	2.2	1.19	29	0.479
33109R	45	80	26	26	20.5	1.5	1.5	1.5	1.5	0.37	1.6	0.9	19	0.538
30209	45	85	20.75	19	16	1.5	1.5	1.5	1.5	0.4	1.5	0.81	18	0.464
32209	45	85	24.75	23	19	1.5	1.5	1.5	1.5	0.4	1.5	0.81	20	0.576
32209X2A	45	85	24.75	23.5	20	1.5	1.5	1.5	1.5	0.4	1.5	0.83	19	0.621
33209	45	85	32	32	25	1.5	1.5	1.5	1.5	0.39	1.6	0.86	22	0.789
31309	45	100	27.25	25	18	2	2	1.5	1.5	0.83	0.7	0.4	32	0.977
31309/YB4	45	100	27.25	25	18	2.5	2.5	2.5	2.5	0.83	0.7	0.4	32	0.977
30309	45	100	27.25	25	22	2	2	1.5	1.5	0.35	1.7	0.96	21	0.987
32309X2A	45	100	31.8	29	20.5	2	2	1.5	1.5	0.72	0.8	0.46	30	1.14
31309X2	45	100	32	29	20.5	2	2	1.5	1.5	0.81	0.7	0.41	33	1.16
30309X2B	45	100	32	29	20.5	2	2	1.5	1.5	0.72	0.8	0.46	30	1.08
32309	45	100	38.25	36	30	2	2	1.5	1.5	0.35	1.7	0.96	25	1.44
306/47	47	100	43	43	37	1.8	1.8	1.8	1.8	0.31	1.9	1.07	27	1.66
32010	50	80	20	20	15.5	1	1	1	1	0.42	1.4	0.78	18	0.381
32010X2A/HAP5-1	50	80	22	20	17.5	4	4	1.5	1.5	0.42	1.4	0.78	19	0.388
33010	50	80	24	24	19	1	1	1	1	0.32	1.9	1.04	17	0.442
30610	50	82	21.5	21.5	17	3	3	0.5	0.5	0.31	2	1.08	16	0.331
32010X3A/HAP5	50	83	20.5	20.5	15.5	4	4	1	1	0.36	1.7	0.92	17	0.43
30210	50	90	21.75	20	17	1.5	1.5	1.5	1.5	0.42	1.4	0.79	20	0.55
32210	50	90	24.75	23	19	1.5	1.5	1.5	1.5	0.42	1.4	0.79	21	0.654
32210A	50	90	25	23	19	1.3	1.3	1.3	1.3	0.42	1.4	0.78	21	0.612
33210	50	90	32	32	24.5	1.5	1.5	1.5	1.5	0.41	1.5	0.8	23	1.17
T2ED050	50	100	36	35	30	2.5	2.5	2.5	2.5	0.34	1.8	0.96	25	1.31
30310	50	110	29.25	27	23	2.5	2.5	2.5	2.5	0.35	1.7	0.96	23	1.26
31310	50	110	29.25	27	19	2.5	2.5	2	2	0.83	0.7	0.4	35	1.25
31310	50	110	29.25	27	19	3	3	3	3	0.83	0.7	0.4	35	1.25
32310/YA6	50	110	42.25	40	33	2.3	2.3	2.3	2.3	0.35	1.7	0.96	27	1.97
32310	50	110	42.25	40	33	2.5	2.5	2	2	0.35	1.7	0.96	27	1.26
339/50.8	50.8	100	35	35	27	1.5	1.5	1.5	1.5	0.4	1.5	0.83	25	1.267
306/50.8	50.8	100	35	35	29	2	2	2	2	0.3	2	1.1	23	1.27
32011	55	90	23	23	17.5	1.5	1.5	1.5	1.5	0.41	1.5	0.81	20	0.564
33011	55	90	27	27	21	1.5	1.5	1.5	1.5	0.31	1.92	1.06	19	0.839
33111/P6XYB	55	95	30	30	23	1.5	1.5	1.5	1.5	0.37	1.6	0.88	18	0.881
33111/HA	55	95	30	30	23	1.5	1.5	1.5	1.5	0.37	1.6	0.88	22	0.881
33111/P6XYBZ	55	95	30	30	23	1.5	1.5	1.5	1.5	0.37	1.6	0.88	22	0.881
30211	55	100	22.75	21	18	2	2	1.5	1.5	0.4	1.5	0.81	21	0.713
30211/YA	55	100	22.75	21	18	2	2	1.5	1.5	0.4	1.5	0.81	21	0.689
32211	55	100	26.75	25	21	2	2	1.5	1.5	0.4	1.5	0.81	22	0.878
32211/YA6	55	100	26.75	25	21	6	0.2	1.5	1.5	0.4	1.5	0.81	22	0.875
32211/HAP6X	55	100	26.75	25	21	2	2	1.5	1.5	0.4	1.5	0.81	22	0.878
33211X2A	55	100	32	31	24.5	2	2	2	2	0.4	1.5	0.81	24	1.01
33211	55	100	35	35	27	2	2	1.5	1.5	0.4	1.5	0.8	25	1.17
33211/HAP6X	55	100	35	35	27	2	2	1.5	1.5	0.4	1.5	0.8	25	1.17
30311	55	120	31.5	29	25	2.5	2.5	2	2	0.35	1.7	0.96	25	1.65
30311R	55	120	31.5	29	25	2.5	2.5	2	2	0.35	1.7	0.96	25	1.71
30311X3R	55	120	31.5	29	25	2.5	2.5	2	2	0.35	1.7	0.96	25	1.84
31311	55	120	31.5	29	21	2.5	2.5	2	2	0.83	0.7	0.4	38	1.78
31311/YA8	55	120	31.5	29	21	2.5	2.5	2	2	0.83	0.7	0.4	38	1.71
31311/YB4	55	120	31.5	29	21	2.5	2.5	2	2	0.83	0.7	0.4	38	1.71
32311	55	120	45.5	43	35	2.5	2.5	2	2	0.35	1.7	0.96	29	2.43
32311/YA6	55	120	45.5	43	35	7	7	2	2	0.35	1.7	0.96	29	2.43
32311A	55	120	45.5	43	35	2.5	2.5	2	2	0.55	1.1	0.6	230	2.51
30611B	55	125	37	36	25	3	3	2	2	0.73	0.8	0.45	38	2.1
32912X2A	60	85	17	16	14	1	1	1	1	0.38	1.6	0.87	17	0.277
32012	60	95	23	23	17.5	1.5	1.5	1.5	1.5	0.4	1.4	0.77	21	0.597
33012	60	95	27	27	21	1.5	1.5	1.5	1.5	0.33	1.8	1	20	0.691
33112	60	100	30	30	23	1.5	1.5	1.5	1.5	0.4	1.5	0.83	23	0.895
30212	60	110	23.75	22	19	2	2	1.5	1.5	0.4	1.5	0.81	23	0.923
32212	60	110	29.75	28	24	2	2	1.5	1.5	0.4	1.5	0.81	25	1.26
32212/HAP6X	60	110	29.75	28	24	2	2	1.5	1.5	0.4	1.5	0.81	25	1.26
33212X3	60	115	40	39	33	4	4	3	3	0.33	1.8	0.99	28	1.86
30312	60	130	33.5	31	26	3	3	2.5	2.5	0.35	1.7	0.96	26	1.96
31312	60	130	33.5	31	22	3	3	2.5	2.5	0.83	0.7	0.4	41	1.92
31312/YB4	60	130	33.5	31	22	3	3	2.5	2.5	0.83	0.7	0.4	41	1.92
32312	60	130	48.5	46	37	3	3	2.5	2.5	0.35	1.7	0.96	31	2.9
31312X3	60	140	42	41	28	3	3	2.5	2.5	0.73	0.8	0.45	42	3.42
32013	65	100	23	23	17.5	1.5	1.5	1.5	1.5	0.46	1.3	0.7	22	0.612
32013X2	65	100	23.3	22	19	1.5	1.5	1.5	1.5	0.35	1.7	0.94	20	0.629
33013	65	100	27	27	21	1.5	1.5	1.5	1.5	0.3	1.7	0.95	21	0.732
7813	65	110	30.35	30	24	3	4	1.8	1.8	0.4	1.5	0.82	25	1.1
7813Y	65	110	30.35	30	24	3	4	1.8	1.8	0.4	1.5	0.82	25	1.1
33113X2-1	65	110	30.35	30	24	3	3	2	2	0.4	1.5	0.82	25	1.13
33113X2	65	110	30.5	30	24	3	4	1.8	1.8	0.39	1.6	0.85	25	1.17
33113	65	110	34	34	26.5	1.5	1.5	1.5	1.5	0.39	1.6	0.85	26	1.3
33113/YB2	65	110	34	34	26.5	1.5	1.5	1.5	1.5	0.39	1.6	0.85	26	1.3
33212	65	110	38	38	29	2	2	1.5	1.5	0.4	1.5	0.8	27	1.51
30213	65	120	24.75	23	20	2	2	1.5	1.5	0.4	1.5	0.81	24	1.14
32213	65	120	32.75	31	27	2	2	1.5	1.5	0.4	1.5	0.81	28	1.58
32213/YA6	65	120	32.75	31	27	1	1	0.4	0.4	0.4	1.5	0.81	28	1.58
32213A/YA6	65	120	33	31	27	1.8	1.8	1.8	1.8	0.37	1.6	0.89	26	1.5
33213	65	120	41	41	32	2	2	1.5	1.5	0.39	1.5	0.85	30	2.02
33213/YB2	65	120	41	41	32	2	2	1.5	1.5	0.39	1.5	0.85	30	2.02
33213/HA	65	120	41	41	32	2	2	1.5	1.5	0.39	1.5	0.85	30	2.02
30613	65	130	45	43	35	7	7	2	2	0.33	1.8	0.99	30	2.64
32313X1	65	130	51	48	39	2.5	2.5	2.5	2.5	0.33	1.8	0.99	32	3.01
32313X1A	65	130	51	48	39	3	3	2.5	2.5	0.35	1.7	0.93	33	2.93
31313	65	140	36	33	23	3	3	2.5	2.5	0.83	0.7	0.4	44	2.46
31313/YA6	65	140	36	33	23	3.8	5	2.5	2.5	0.83	0.7	0.4	44	2.45
31313/YB4	65	140	36	33	23	3	3	2.5	2.5	0.83	0.7	0.4	44	2.46
30313	65	140	36	33	28	3	3	2.5	2.5	0.35	1.7	0.96	28	2.49
30313/YA6-1	65	140	36	33	28	3	3	6	6	0.35	1.7	0.96	28	2.49
30313/YA6	65	140	36	33	28	6	6	2.5	2.5	0.35	1.7	0.96	28	2.49
30313/YA6-2	65	140	36	33	28	6	6	2.5	2.5	0.35	1.7	0.96	28	2.49
27713E	65	140	40	39	26	3.5	3.5	2	2	0.73	0.8	0.45	42	2.77
32313	65	140	51	48	39	3	3	2.5	2.5	0.35	1.7	0.96	33	3.68
T5GD065	65	140	51	48	39	3	3	2.5	2.5	0.55	1.1	0.6	41	4.36
30613-1	65	150	53.5	54	44.5	2.3	2.3	2.3	2.3	0.36	1.7	0.9	37	4.43
32914	70	100	20	20	16	1	1	1	1	0.32	1.9	1.05	18	0.475
32914X2A	70	100	20	19	16	1	1	1	1	0.36	1.7	0.92	19	0.477
32014	70	110	25	25	19	1.5	1.5	1.5	1.5	0.43	1.4	0.76	26	0.972
33114X2A/YA6	70	120	33	33	27	2	2	2	2	0.28	2.2	1.19	23	1.51
33114	70	120	37	37	29	2	2	1.5	1.5	0.38	1.6	0.87	28	1.72
30614R	70	120	45	42	37	2.5	2.5	2.5	2.5	0.39	1.5	0.84	32	1.94
30614	70	120	45	42	37	2.5	2.5	2.5	2.5	0.39	1.5	0.84	32	1.89
30214	70	125	26.25	24	21	2	2	1.5	1.5	0.42	1.4	0.79	26	1.29
32214	70	125	33.25	31	27	2	2	1.5	1.5	0.42	1.4	0.79	29	1.66
32214/YA6	70	125	33.25	31	27	2.5	2.5	2.5	2.5	0.42	1.4	0.79	29	1.66
30214X3/YA6	70	130	57	56	35	10.5	11	1.5	1.5	0.33	1.8	0.99	30	2.92
31314	70	150	38	35	25	3	3	2.5	2.5	0.83	0.7	0.4	47	2.87
31314	70	150	38	35	25	3	3	2.5	2.5	0.83	0.7	0.4	47	2.87
30314	70	150	38	35	30	3	3	2.5	2.5	0.35	1.7	0.96	30	3.08
30314/YA6	70	150	38	35	30	8.5	8.5	2.5	2.5	0.35	1.7	0.96	30	3.08
T5GD070	70	150	54	51	42	3	3	2.5	2.5	0.55	1.1	0.6	44	4.54
32314	70	150	54	51	42	3	3	2.5	2.5	0.35	1.7	0.96	36	4.38
32314/YA6	70	150	54	51	42	6	6	2.5	2.5	0.35	1.7	0.96	36	4.38
32314/YA6-1	70	150	54	51	42	3	3	2.5	2.5	0.35	1.7	0.96	36	4.33
30614-1	70	165	57	57	40	6	6	3	3	0.7	0.86	0.47	52	6.09
32015	75	115	25	25	19	1.5	1.5	1.5	1.5	0.46	1.3	0.72	25	0.922
33015	75	115	31	31	25.5	1.5	1.5	1.5	1.5	0.3	2	1.1	23	1.1
33115	75	125	37	37	29	2	2	1.5	1.5	0.4	1.5	0.83	29	1.8
30215	75	130	27.25	25	22	2	2	1.5	1.5	0.44	1.4	0.76	28	1.4
32215	75	130	33.25	31	27	2	2	1.5	1.5	0.44	1.4	0.76	30	1.76
32215/YA6	75	130	33.25	31	27	3	3	2.5	2.5	0.44	1.4	0.76	30	1.76
32215A/YA6	75	130	33.5	31	27	1.8	1.8	1.8	1.8	0.41	1.5	0.81	29	1.74
33215	75	130	41	41	31	2	2	1.5	1.5	0.43	1.4	0.77	32	2.27
33215X2A-1	75	135	44	45	35	3	3	2.5	2.5	0.4	1.5	0.82	33	2.66
33215X2A	75	135	44.5	45	35	2.3	2.3	2.3	2.3	0.4	1.5	0.82	33	2.58
30615	75	135	44.5	45	36.5	2.5	2.5	2.5	2.5	0.28	2.2	1.19	29	2.79
31315X3	75	150	30.5	29	20	3	3	2.5	2.5	0.64	0.94	0.52	38	2.24
30315	75	160	40	37	31	3	3	2.5	2.5	0.35	1.7	0.96	32	3.71
31315	75	160	40	37	26	3	3	2.5	2.5	0.83	0.7	0.4	50	3.4

Message
